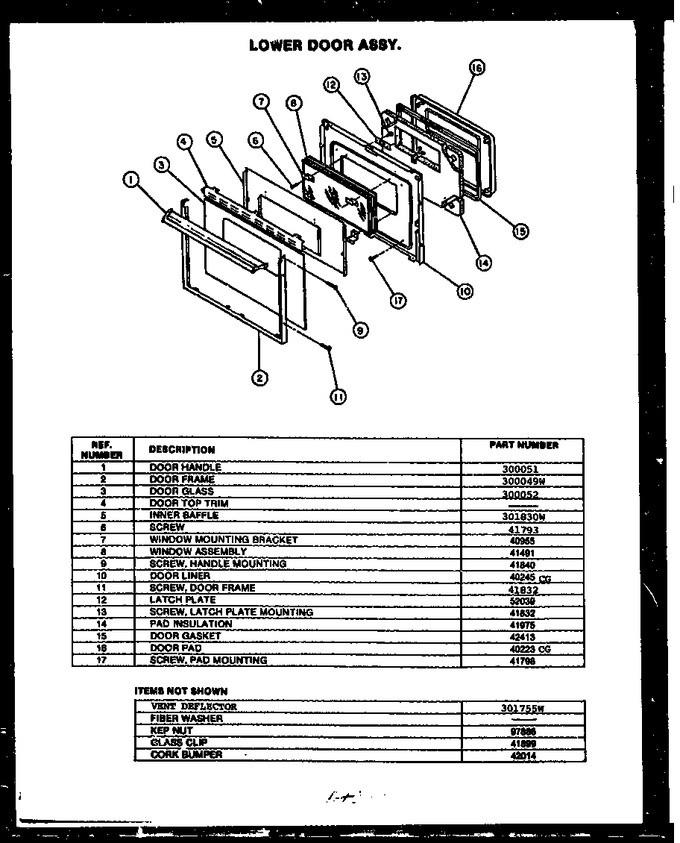

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0300051		Oven Door Handle		Appelez-nous	-
2	300049W		Frame, Oven Door		Appelez-nous	-
3	Y0300052		Door Glass, D Doors		Appelez-nous	-
4	Y00000000		See Note Door Top Trim		Appelez-nous	-
5	301830W		Inner Baffle, White		Appelez-nous	-
6	Y0041793		Tapping Screw 8 18 Hex		Appelez-nous	-
7	Y0040955		Window Mtg. Brkt. Pk411		Appelez-nous	-
8	0041491		Window Assy		Appelez-nous	-
9	0041840		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
10	Y40245CG		Door Liner		Appelez-nous	-
11	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
12	Y0052039		Latch Plate		Appelez-nous	-
13	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
14	Y0041975		Insulation 2x20x72		Appelez-nous	-
15	Y0042413		Gasket, Door (76``)		Appelez-nous	-
16	Y40223CG		Door Pad		Appelez-nous	-
17	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
NI	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
NI	Y00000000		See Note Fiber Washer		Appelez-nous	-
NI	0042014		Cork Bumper		Appelez-nous	-
NI	Y0041899		Glass Clip		Appelez-nous	-
NI	301755W		Vent Deflector, White		Appelez-nous	-
