Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0051644 Used In 0051383 Kit Appelez-nous -
2 0041801 Screw No.8-18x.375 Ab Appelez-nous -
3 76029 Screw Appelez-nous -
4 Y0042711 Rack, Oven Appelez-nous -
5 0051645 Bake Element Appelez-nous -
6 4396923 Broiler Grid   (Replaces: Y0098682) In-Stock Immediately $ 52.04

7 Y11161CG Broiler Pan Appelez-nous -
8 0051650 Rack, Microwave Oven Appelez-nous -
9 67822 Cooking Plate, Microwave In-Stock Immediately $ 28.63


    View Diagram in Separate Window     Print Icon   Print Part List

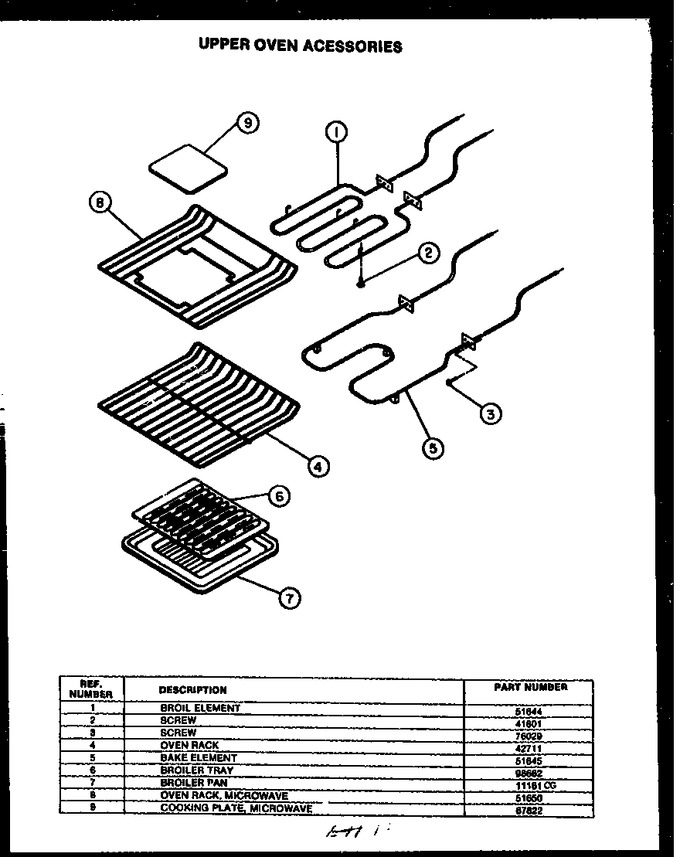

Diagram for FDO280
