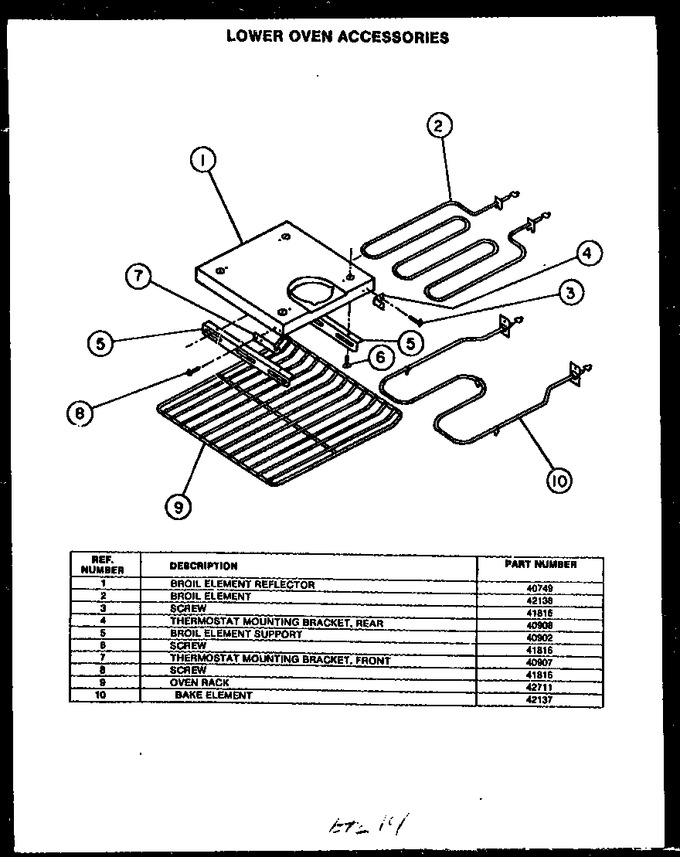

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0040749		Broil Element Reflector Pyro		Appelez-nous	-
2	Y0042138		Element, Broil (240v-2800w)		Appelez-nous	-
3	WP90767		Screw, Sm   (Replaces: Y0041816)			Immediately	$ 7.04
4	0040908		Thermostat Mtg Brkt Rear Pyro		Appelez-nous	-
5	Y0040902		Broil Element Support Pyro		Appelez-nous	-
6	WP90767		Screw, Sm   (Replaces: Y0041816)			Immediately	$ 7.04
7	0040907		Thermostat Mtg Brkt Frt Pyro		Appelez-nous	-
8	WP90767		Screw, Sm   (Replaces: Y0041816)			Immediately	$ 7.04
9	Y0042711		Rack, Oven		Appelez-nous	-
10	WP77001092		Element, Bake (240v-2800w)   (Replaces: Y0042137)				$ 130.93

    View Diagram in Separate Window       Print Part List
