SELECT A DIAGRAM
New Model Search:

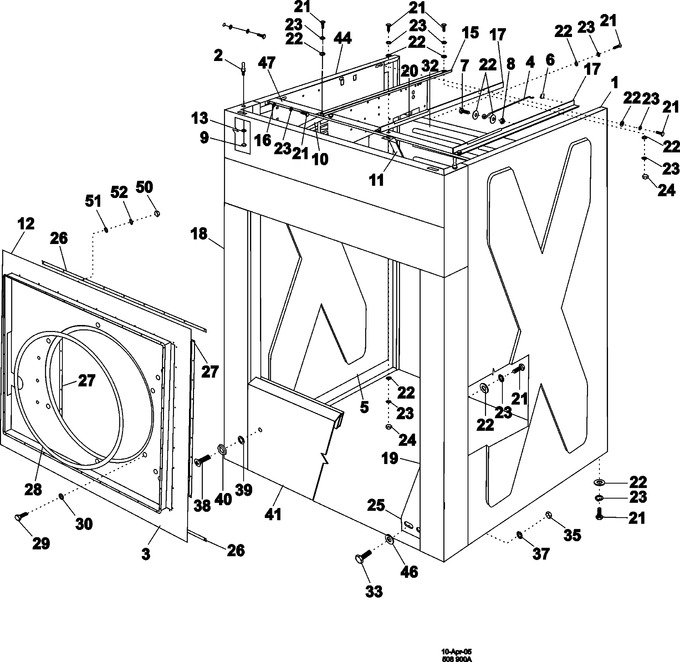

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23004374 | Panel, Side Rh | 10 |
|
- | ||||
| 001 | 23004375 | Panel, Side Lh | 10 |
|
- | ||||
| 002 | 23001332 | Pin, Srv | 10 |
|
- | ||||
| 003 | 23003835 | Cover, Complete | 10 |
|
- | ||||
| 004 | 23001330 | Support Rod, Top Panel | 10 |
|
- | ||||
| 005 | 23001567 | Sheet, Anti-vibration | 10 |
|
- | ||||
| 006 | 23002454 | Hook | 10 |
|
- | ||||
| 007 | 23002463 | Screw (m6 X 30) | 10 |
|
- | ||||
| 008 | 23001310 | Nut, Self Locking (m6) | 10 |
|
- | ||||
| 009 | W10244602 | Nut (m5) Lu (Replaces: 23001334) | 10 |
|
$ 11.90 | ||||
| 010 | 23004376 | Reinforcement-rh Lu | 10 |
|
- | ||||
| 011 | 23004377 | Reinforcement-lh | 10 |
|
- | ||||
| 012 | 23004378 | Rubber Washer | 10 |
|
- | ||||
| 013 | 23004485 | Lock Washer (m5) Lu (Replaces: 23001333) | 10 |
|
- | ||||
| 015 | 23003883 | Holder Contactor Box | 10 |
|
- | ||||
| 016 | 23003884 | Cross Holder | 10 |
|
- | ||||
| 017 | 23003885 | Holder Soap Hopper | 10 |
|
- | ||||
| 018 | 23004379 | Front Cover, Lh | 10 |
|
- | ||||
| 019 | 23004380 | Front Cover, Rh | 10 |
|
- | ||||
| 020 | 23002473 | Rubber, Protective | 10 |
|
$ 4.52 | ||||
| 021 | 23004114 | Screw (m6 X16) (Replaces: 23002461) | 10 |
|
- | ||||
| 022 | 23002469 | Washer | 10 |
|
- | ||||
| 023 | 23002130 | Washer (6) | 10 |
|
- | ||||
| 024 | 23001034 | Nut (m6) | 10 |
|
- | ||||
| 025 | 23004381 | Bracket, Lh Front | 10 |
|
- | ||||
| 025 | 23004382 | Bracket, Rh Front | 10 |
|
- | ||||
| 026 | 23003840 | Strip, Metal Top | 10 |
|
- | ||||
| 027 | 23003839 | Strip, Metal Sides | 10 |
|
- | ||||
| 028 | 23002473 | Rubber, Protective | 10 |
|
$ 4.52 | ||||
| 029 | 23003422 | Screw, M4x10 Din 966 | 10 |
|
- | ||||
| 030 | 23001204 | Washer, Finishing (dia. 5) | 10 |
|
$ 278.89 | ||||
| 032 | 23004383 | Rear Panel Complete | 10 |
|
- | ||||
| 032 | 23004384 | Rear Panel(steam) Complete | 10 |
|
- | ||||
| 033 | 23003593 | Screw (m8x25) | 10 |
|
- | ||||
| 035 | 23001266 | Nut M8 | 10 |
|
- | ||||
| 037 | 23002439 | Washer, Spring Lock (8) | 10 |
|
- | ||||
| 038 | 23001336 | Screw (m6 X 50) | 10 |
|
- | ||||
| 039 | 23002458 | Washer (fiber) | 10 |
|
- | ||||
| 040 | 23002457 | Washer | 10 |
|
- | ||||
| 041 | 23004385 | Panel, Service Complete | 10 |
|
- | ||||
| 044 | 23004386 | Panel, Electrical Components | 10 |
|
- | ||||
| 046 | 23001263 | Washer (8.4) | 10 |
|
- | ||||
| 047 | 23001159 | Washer (dia. 14x8.6x1 Stnls)lu | 10 |
|
- | ||||
| 050 | 23003666 | Nut (m4) | 10 |
|
- | ||||
| 051 | 23002438 | Washer (m6) | 10 |
|
- | ||||
| 052 | 23002400 | Washer | 10 |
|
- |
