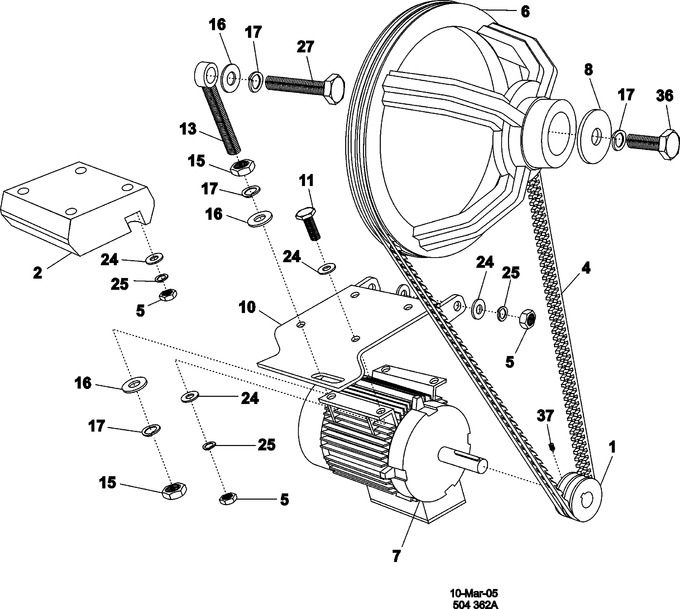

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004401		Pulley, Motor	10	Appelez-nous	-
002	23004402		Motor Counter Weight	10	Appelez-nous	-
004	23004403		V-belt	10	Appelez-nous	-
005	23003676		Nut M12	10	Appelez-nous	-
006	23004404		Pulley, Drum Mfs35	10	Appelez-nous	-
007	23004082		Motor 240v 3phase	10	Appelez-nous	-
008	23003591		Washer	10	Appelez-nous	-
010	23004405		Mounting Plate, Motor	10	Appelez-nous	-
011	23002661		Screw (m12x35)	10	Appelez-nous	-
013	NLA		Screw (m16x110)	10	Appelez-nous	-
015	NLA		Nut (m16)	10	Appelez-nous	-
016	23001735		Washer M17	10	Appelez-nous	-
017	23003402		Spring Lock Washer 16 Din 127	10	Appelez-nous	-
024	NLA		Washer (10.5)	10	Appelez-nous	-
025	23002658		Washer (12)	10	Appelez-nous	-
027	23004040		Bolt M16x50	10	Appelez-nous	-
036	23004040		Bolt M16x50	10	Appelez-nous	-
037	NLA		Screw, Set (m5 X 6)	10	Appelez-nous	-
