SELECT A DIAGRAM

01 - Frame And Tub Support


02 - Cabinet


03 - Control Panel


04 - Soap Hopper


05 - Door Lock


06 - Water System And Drain Valve


07 - Rear Panel


08 - Drive


09 - Electrical

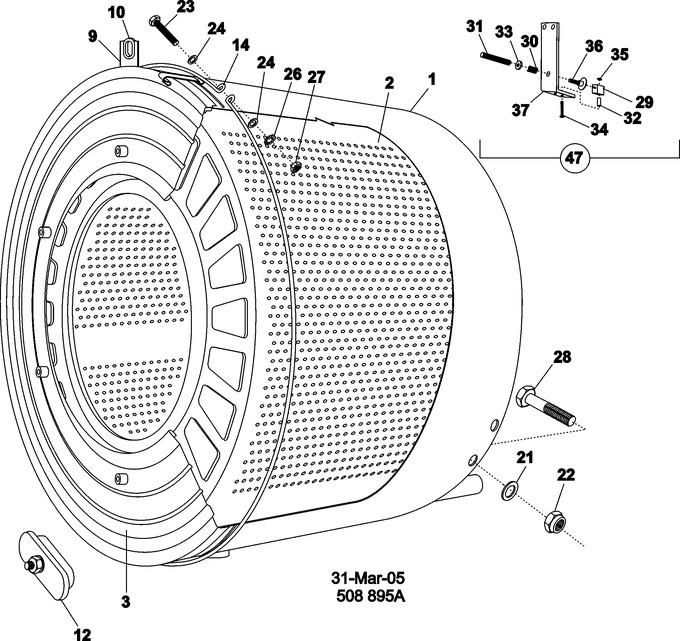

10 - Wash Drum And Tub


11 - Door


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003897		Tub	10	Appelez-nous	-
002	23004410		Drum, Inner Tub	10	Appelez-nous	-
003	23004411		Plate, Front Outer Drum	10	Appelez-nous	-
003	23004522		Sealing, Front Plate	10	Appelez-nous	-
009	23003911		Plate, Detection Tiltswitch	10	Appelez-nous	-
010	23003539		Passage, Cable	10	Appelez-nous	-
012	23001594		Blind, Heating Element	10	Appelez-nous	-
014	23004142		Clamp Ii	10	Appelez-nous	-
021	NLA		Washer	10	Appelez-nous	-
022	NLA		Nut (m16)	10	Appelez-nous	-
023	23003541		Screw (m6x70)	10	Appelez-nous	-
024	23001309		Washer (6.4) Lu	10	Appelez-nous	-
026	23001028		Lock Washer External Teethm6lu	10	Appelez-nous	-
027	23003606		Nut (m6)	10	Appelez-nous	-
028	23004523		Bolt M16x70	10	Appelez-nous	-
029	23003899		Micro Switch	10	Appelez-nous	-
030	23003900		Spring	10	Appelez-nous	-
031	23003901		Spring	10	Appelez-nous	-
032	23003902		Spacer	10	Appelez-nous	-
033	23002951		Washer, Fiber	10	Appelez-nous	-
034	23003903		Screw M3x25	10	Appelez-nous	-
035	23001053		Nut (m3)	10	Appelez-nous	-
036	23003904		Spring Holder Tiltswitch	10	Appelez-nous	-
037	23003905		Support Tilt Switch	10	Appelez-nous	-
047	23004414		Tilt Switch Complete	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
