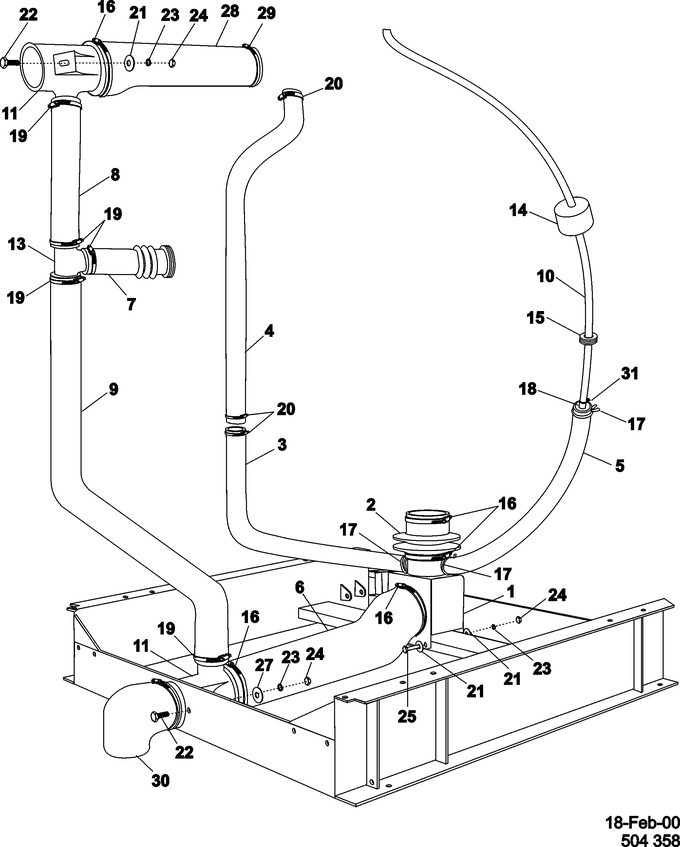

06 - Water System And Drain Valve


07 - Rear Panel


08 - Drive


09 - Electrical


10 - Wash Drum And Tub


11 - Door


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001244		Valve, Drain (240v-50/60hz)	10			$ 2,768.25
001	23002321		Motor, Drain (240v)	10	Appelez-nous	-
001	W10126968		Drain Valve Housing 3``	10	Appelez-nous	-
002	23002907		Tub, Outlet Valve Hose	10	Appelez-nous	-
003	23001246		Hose, Bottom Fill	10	Appelez-nous	-
004	23001549		Hose, Outlet (soaphopper) Lu	10	Appelez-nous	-
005	23003035		Elbow	10	Appelez-nous	-
006	23001248		Hose, Drain	10	Appelez-nous	-
007	23001250		Hose, Air Vent	10	Appelez-nous	-
008	23001251		Hose, Overflow	10	Appelez-nous	-
009	23001251		Hose, Overflow	10	Appelez-nous	-
010	23001252		Hose, Water Level Switch	10	Appelez-nous	-
011	23001253		Drain Tee	10	Appelez-nous	-
013	23001255		Tee, Overflow Hose	10	Appelez-nous	-
014	23004491		Foam Rubber Aquastate	10	Appelez-nous	-
015	23003487		Washer, Rubber	10	Appelez-nous	-
016	WP696392		Clamp, Hose (70-90)   (Replaces: 23001258)	10			$ 7.31
017	WP285655		Clamp, Corbin (a17.5)   (Replaces: 23001259)	10		Immediately	$ 7.55
018	23001260		Bushing, Air Dome Hose	10	Appelez-nous	-
019	23001750		Ring, Clamp (40-60)	10	Appelez-nous	-
020	WP616099		Clamp, Hose (20-32)   (Replaces: 23001262)	10		Immediately	$ 7.03
021	23001263		Washer (8.4)	10	Appelez-nous	-
022	23003593		Screw (m8x25)	10	Appelez-nous	-
023	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
024	23001266		Nut M8	10	Appelez-nous	-
025	23002908		Screw (m8x120)	10	Appelez-nous	-
027	23003491		Washer (8.4)	10	Appelez-nous	-
028	23001254		Air Vent Hose, Soap Box	10	Appelez-nous	-
029	WP696392		Clamp, Hose (70-90)   (Replaces: 23001258)	10			$ 7.31
030	23002015		Elbow (90 Degree)	10	Appelez-nous	-
031	NLA		Ring, Corbin	10	Appelez-nous	-
