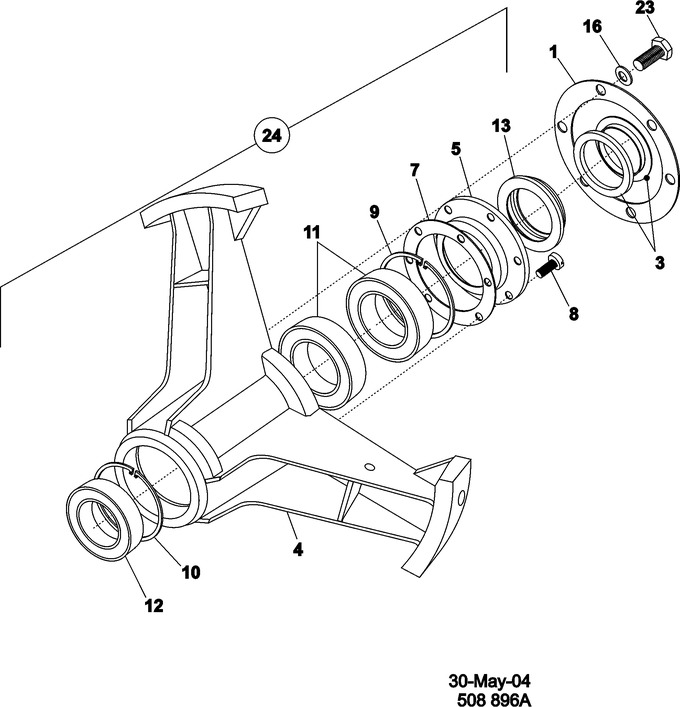

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003607		Plate, Pressure	10	Appelez-nous	-
003	23003608		Ring, Counter	10	Appelez-nous	-
004	23003609		Housing, Bearing	10	Appelez-nous	-
005	23003610		Ring, Joint	10	Appelez-nous	-
007	23004412		Seal	10	Appelez-nous	-
008	8169480		Screw (m5x12 Stainless Steel)   (Replaces: 23001184)	10			$ 11.15
009	23003612		Ring, Securing (d110)	10	Appelez-nous	-
010	23003613		Ring, Securing (d100)	10	Appelez-nous	-
011	23003614		Bearing	10	Appelez-nous	-
012	23003615		Bearing	10	Appelez-nous	-
013	23003616		Seal, Axial	10	Appelez-nous	-
016	23001201		Washer (dia. 22x11x1 Brass)	10			$ 303.26
023	23001389		Bolt (m10 X 25 Stnls Steel)	10	Appelez-nous	-
024	23004413		Bearing Hsg Complete	10	Appelez-nous	-
