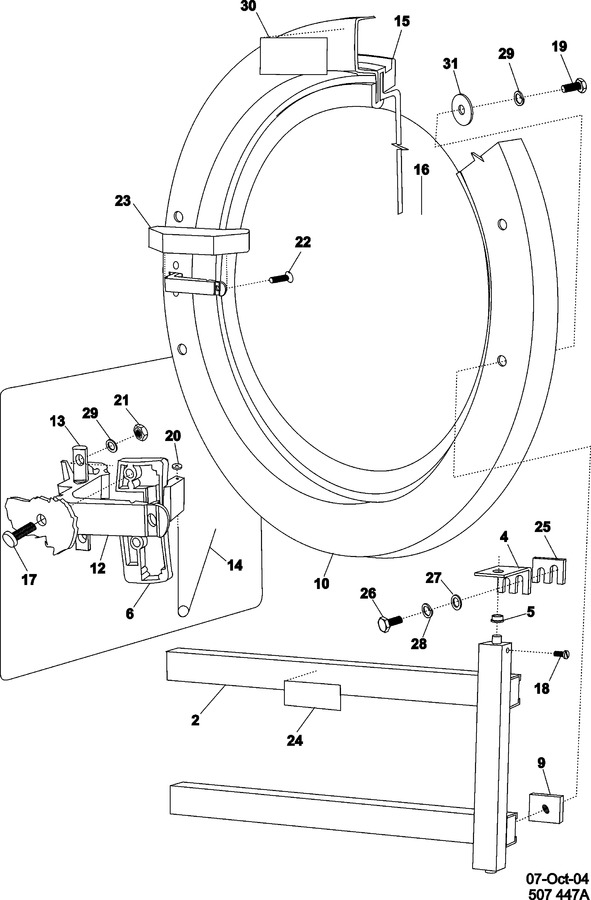

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23003094		Doorholder	10	Appelez-nous	-
004	23003095		Hinge	10	Appelez-nous	-
005	23003096		Piece, Insertion	10	Appelez-nous	-
006	23001370		Handle, Lever Plate	10	Appelez-nous	-
009	NLA		Nut, Doorholder	10	Appelez-nous	-
010	23002261		Ring, Door	10	Appelez-nous	-
012	23003858		Handle	10	Appelez-nous	-
013	23001168		Shaft, Lever	10	Appelez-nous	-
014	23001169		Spring, Handle Lever	10	Appelez-nous	-
015	23003859		Doorseal	10	Appelez-nous	-
016	23003103		Glass	10	Appelez-nous	-
017	23001175		Screw (m6x20 Stainless Steellu	10	Appelez-nous	-
018	23001621		Screw (m4x12) Lu	10		Immediately	$ 311.03
019	23002279		Bolt (m6x20)	10	Appelez-nous	-
020	23002499		Washer	10	Appelez-nous	-
021	23002280		Nut M6	10	Appelez-nous	-
022	23003793		Bolt M4x12	10	Appelez-nous	-
023	23003860		Plate, Handle Ornamental	10	Appelez-nous	-
024	23001468		Sticker, Spin Direction	10			$ 870.39
025	NLA		Washer, Hinge	10	Appelez-nous	-
026	23002723		Screw (m8x22)	10	Appelez-nous	-
027	23001608		Washer (m8) Lu	10	Appelez-nous	-
028	23002727		Washer (8) Lu	10	Appelez-nous	-
029	23002130		Washer (6)	10	Appelez-nous	-
030	23002297		Label, Heatwarning	10	Appelez-nous	-
031	23002265		Washer	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
