SELECT A DIAGRAM

01 - Frame And Tub Support


02 - Cabinet


03 - Control Panel


04 - Soap Hopper


05 - Door Lock


06 - Water System And Drain Valve


07 - Rear Panel


08 - Drive


09 - Electrical


10 - Wash Drum And Tub


11 - Door


12 - Trunnion

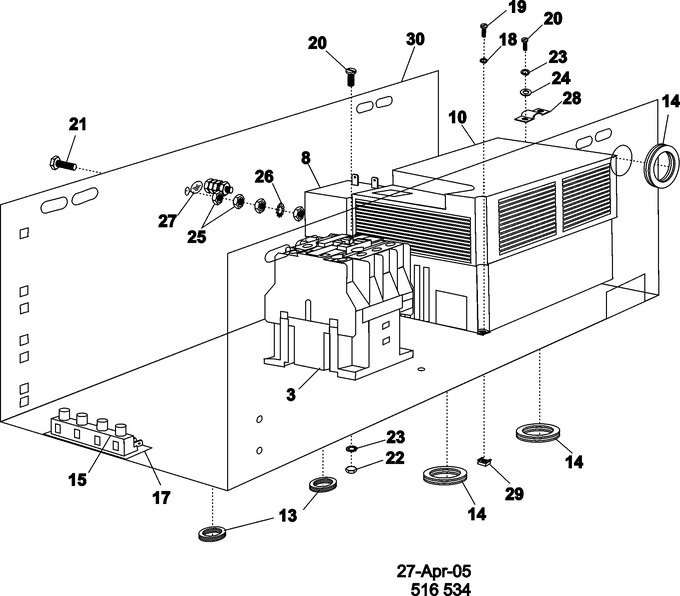

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
003	23003750		Contactor Lc1 Do9	10	Appelez-nous	-
008	23004406		Filter, Mcg	10	Appelez-nous	-
010	23003986		Inverter E520s-2.2kw	10	Appelez-nous	-
010	23004220		Fan, Inverter Freq	10	Appelez-nous	-
010	23004407		Cable, Communication	10	Appelez-nous	-
013	23001138		Bushing, Cable Passage	10	Appelez-nous	-
014	23001117		Ring, Rubber (dia. 25)	10	Appelez-nous	-
015	23001113		Connector Housing (4 Pole)	10	Appelez-nous	-
017	23004408		Insulation Paper	10	Appelez-nous	-
018	23004485		Lock Washer (m5) Lu   (Replaces: 23001333)	10	Appelez-nous	-
019	23004409		Bolt M5 X 16	10	Appelez-nous	-
020	W10295997		Screw (m4 X 16 Ck)   (Replaces: 23001089)	10			$ 6.27
021	23001311		Bolt (m6 X 25)	10	Appelez-nous	-
022	23001055		Nut (m4)	10	Appelez-nous	-
023	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
024	23002504		Washer	10	Appelez-nous	-
025	23001312		Nut M6	10	Appelez-nous	-
026	23001028		Lock Washer External Teethm6lu	10	Appelez-nous	-
027	23002505		Plate, Earth	10	Appelez-nous	-
028	23004094		Holder	10	Appelez-nous	-
029	23001448		Nut, Rapid (m5)	10	Appelez-nous	-
030	23004386		Panel, Electrical Components	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
