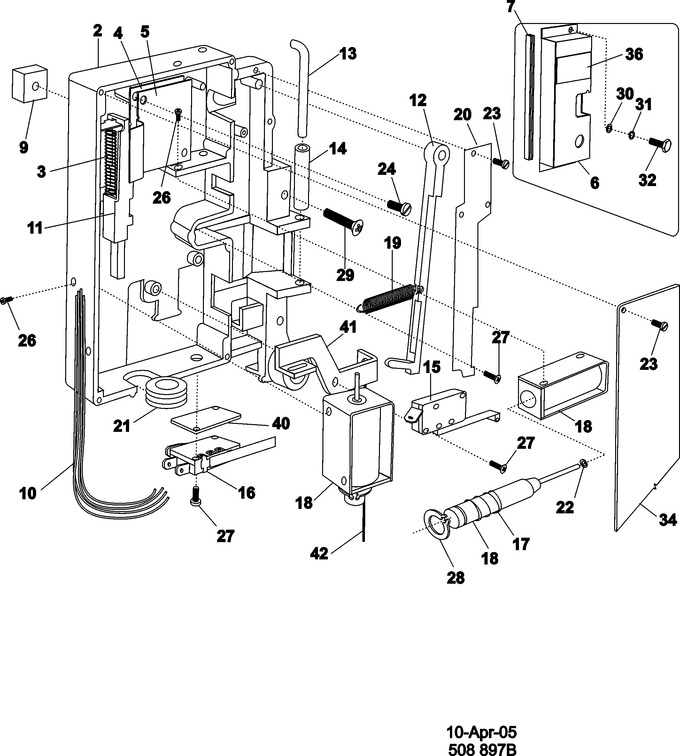

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003861		Door Lock Complete	10	Appelez-nous	-
002	Y23002898		Ground, Plate Lock	10	Appelez-nous	-
003	23003106		Spring, Doorlock	10	Appelez-nous	-
004	23003107		Plate, Decoupling	10	Appelez-nous	-
005	23003108		Plate, Decoupling	10	Appelez-nous	-
006	23003864		Cover, Locking Device	10	Appelez-nous	-
007	23002473		Rubber, Protective	10			$ 4.52
009	23003110		Washer	10	Appelez-nous	-
010	23004400		Harn, Door Lock	10	Appelez-nous	-
011	23001140		Bar, Locking	10	Appelez-nous	-
012	23002899		Handle, Locking Part	10	Appelez-nous	-
013	23001142		Retainer, Lock Tube (dia.4x45)	10	Appelez-nous	-
014	23001143		Lock Tube (dia. 4x23.5 Stnls)	10	Appelez-nous	-
015	23003112		Microswitch	10	Appelez-nous	-
016	23001145		Microswitch, Long Lever	10	Appelez-nous	-
017	23002903		Spring, Locking Part	10	Appelez-nous	-
018	23001146		Coil (240v)	10	Appelez-nous	-
019	23002900		Spring, Locking Part	10	Appelez-nous	-
020	23001149		Leaf Spring, Latch Bar	10	Appelez-nous	-
021	23001138		Bushing, Cable Passage	10	Appelez-nous	-
022	23001136		Washer (dia. 5.1 X 3.3 X 0.1)	10	Appelez-nous	-
023	23003113		Screw (m3x6)	10	Appelez-nous	-
024	23003114		Screw (m4x8) Lu	10	Appelez-nous	-
026	23002869		Screw (m3x6)	10	Appelez-nous	-
027	23003115		Screw (m3x14)	10	Appelez-nous	-
028	23001137		Ring, Retaining (g10)	10	Appelez-nous	-
029	23003116		Screw (m5x30)	10	Appelez-nous	-
030	23002424		Washer	10	Appelez-nous	-
031	23002130		Washer (6)	10	Appelez-nous	-
032	23002422		Screw (m6 X 12)	10	Appelez-nous	-
034	23004351		Cover, Door Lock	10	Appelez-nous	-
036	NLA		Label (warning)	10	Appelez-nous	-
040	23003863		Plate, Microswitch	10	Appelez-nous	-
041	23002827		Lever, Emergency Opening   (Replaces: 23001153)	10		Immediately	$ 646.96
042	23001152		Cord, Opening   (Replaces: 23002901)	10		Immediately	$ 458.78
