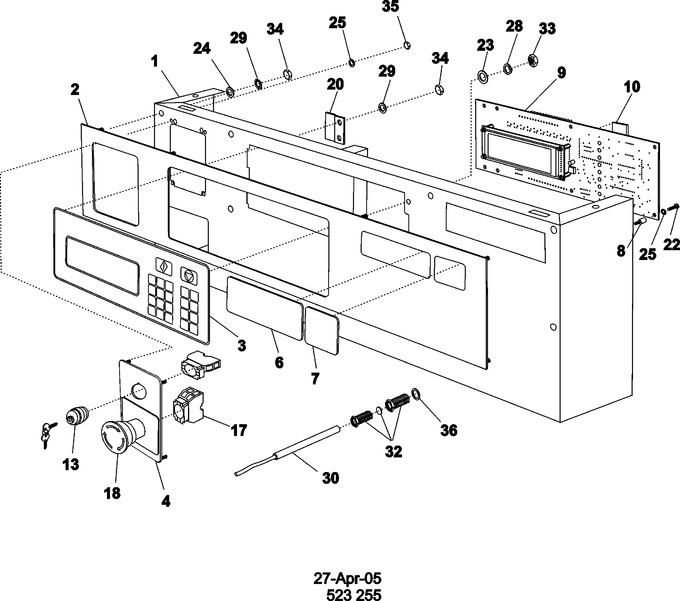

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004387		Bracket,control Panel	10	Appelez-nous	-
002	23004388		Panel, Facia	10	Appelez-nous	-
003	23004133		Key Board, Full Control	10	Appelez-nous	-
004	23004389		Plate, Insert	10	Appelez-nous	-
006	23004390		Logo, Label	10	Appelez-nous	-
007	23004391		Label, Insert	10	Appelez-nous	-
008	23004134		Spacer M3xm5x3	10	Appelez-nous	-
009	23003991		Mcg Controller	10	Appelez-nous	-
010	23003992		Mcg Eeprom Chip Lu	10	Appelez-nous	-
013	23001082		Block, Programming Key	10	Appelez-nous	-
017	23004137		Contact Block	10	Appelez-nous	-
018	23004136		Stop Button Emergency	10	Appelez-nous	-
020	23003871		Bracket, Z	10	Appelez-nous	-
022	23001131		Screw (m3 X 14 Cross Recessed)	10	Appelez-nous	-
023	23001708		Washer (5.3)	10	Appelez-nous	-
024	23002504		Washer	10	Appelez-nous	-
025	23001054		Locking Washer	10	Appelez-nous	-
028	23004485		Lock Washer (m5) Lu   (Replaces: 23001333)	10	Appelez-nous	-
029	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
030	23003831		Sensor, Temperature	10	Appelez-nous	-
032	23003807		Holder Thermostat Sensor	10	Appelez-nous	-
033	W10244602		Nut (m5) Lu   (Replaces: 23001334)	10			$ 11.90
034	23001055		Nut (m4)	10	Appelez-nous	-
035	23001053		Nut (m3)	10	Appelez-nous	-
036	23002179		Washer	10	Appelez-nous	-
037	23004164		Connector Liq Soap Lu	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
