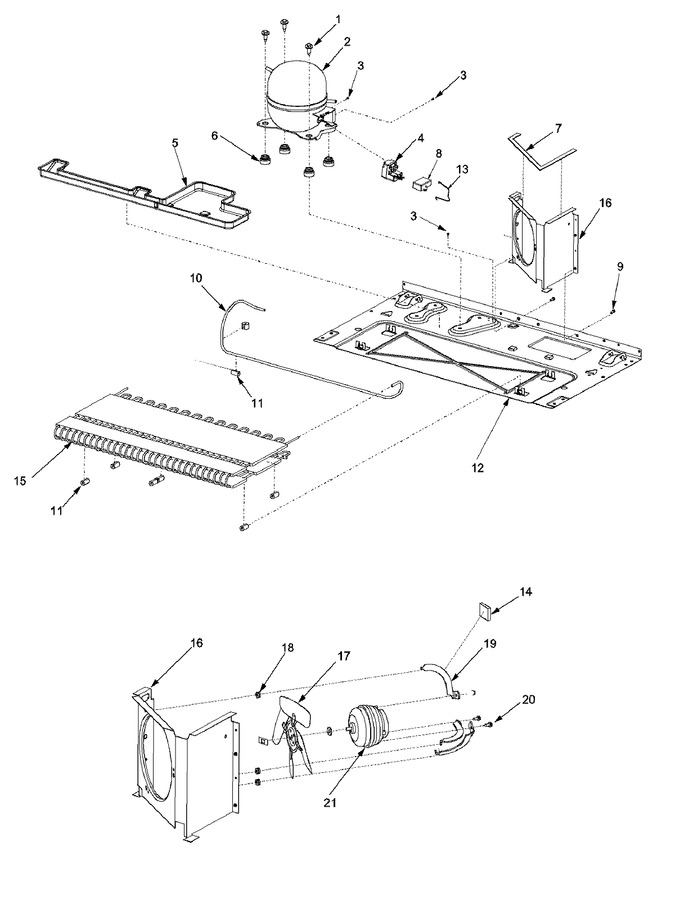

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0221523		Screw, Shldr		Appelez-nous	-
2	W10309990		Compressor, Tc Tpe1380y   (Replaces: 12049717)			Immediately	$ 569.53
3	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
4	WP12555902		Overload, Relay   (Replaces: 12555902)			Immediately	$ 124.53
5	WP12579803		Pan, Drain   (Replaces: 12579801)				$ 220.91
6	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 6.47
7	WP854334		Gasket, Cond Shroud   (Replaces: A3189387)				$ 11.95
8	WP65889-4		Capacitor   (Replaces: C8931612)			Immediately	$ 55.03
9	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.26
10	67002236		Tube, Discharge		Appelez-nous	-
11	67005680		Grommet, Condenser   (Replaces: 12578601)				$ 18.95
12	67001512		Pan, Base		Appelez-nous	-
13	12576801		Strap, Bale		Appelez-nous	-
14	67001096		Gasket, Protective		Appelez-nous	-
15	WP67006131		Condenser   (Replaces: 12560503ED)				$ 330.07
16	67001090		Shroud, Condenser Fan		Appelez-nous	-
17	WP12587601		Blade, Cond Fan   (Replaces: 12587601)				$ 114.00
18	12578701		Grommet, Fan Brkt		Appelez-nous	-
19	67001311		Bracket, Cond Mtr		Appelez-nous	-
20	M0223816		Screw, Tr				$ 5.27
21	833697		Motor, Condenser Fan   (Replaces: 10884507)			Immediately	$ 79.34
22	67002661		Harness, Mc		Appelez-nous	-
