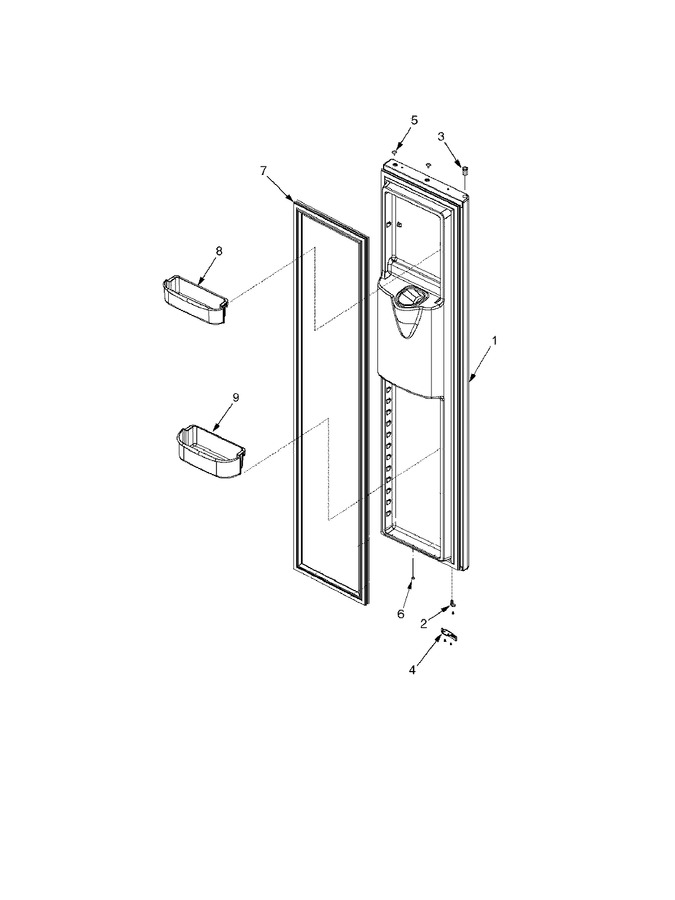

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001658		Fz Dr Foam Assy (bsq)		Appelez-nous	-
2	12571301B		Closure, Door (blk)		Appelez-nous	-
2	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 9.40
3	12395501B		Bushing, Door (blk)		Appelez-nous	-
4	12636401C		Stop, Door (bsq)		Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.20
5	M0311606		Plug, Button (bsq)		Appelez-nous	-
6	A3080001		Plug, Button (blk)		Appelez-nous	-
7	12591502W		Gasket, Fz Dr (wht)		Appelez-nous	-
8	12556901		Bucket, Upr Fz Dr		Appelez-nous	-
9	12557501		Bucket, Lwr Fz Dr				$ 15.88

    View Diagram in Separate Window       Print Part List
