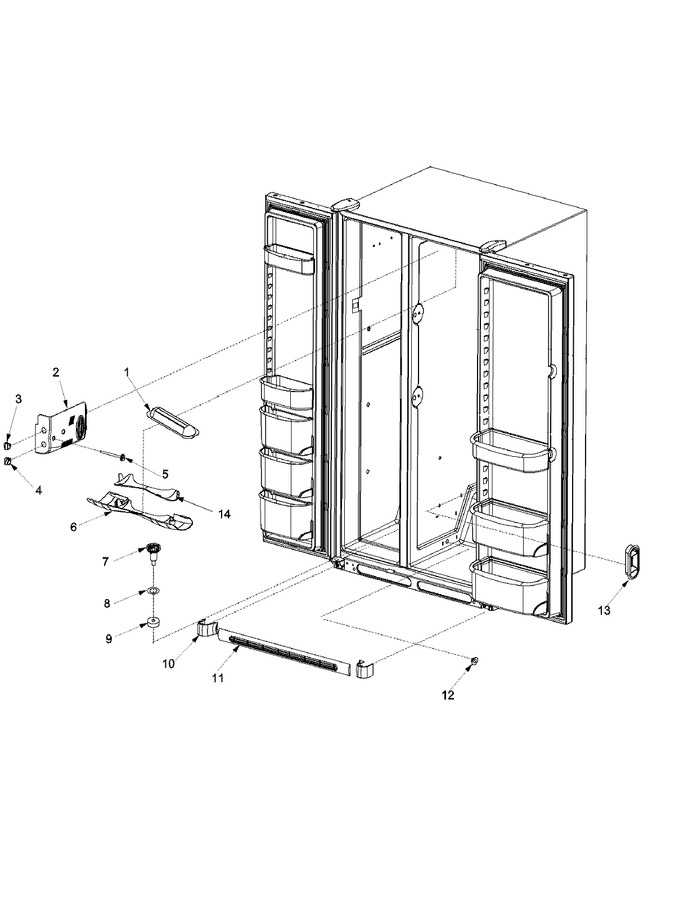

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002825		Housing, Up Ref Light		Appelez-nous	-
1	12664701		Insulation, Lt Housing		Appelez-nous	-
2	67003017		Cover, Control Xx		Appelez-nous	-
3	12581102		Knob, Control		Appelez-nous	-
4	12581101		Knob, Control		Appelez-nous	-
5	M0231426		Screw		Appelez-nous	-
6	12679702		Cover, Light		Appelez-nous	-
7	12456901		Funnel, Drain		Appelez-nous	-
8	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 9.83
9	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 6.67
10	12561901C		Cover, Lwr Hinge (bsq)		Appelez-nous	-
11	12627302		Clip, Toe Grille				$ 5.84
11	67002390		Toe Grille Assy (bsq)				$ 35.68
12	67003018		Plug, Air Tunnel		Appelez-nous	-
13	12634801		Grille, Return Air		Appelez-nous	-
14	12677801		Lens, Light		Appelez-nous	-
