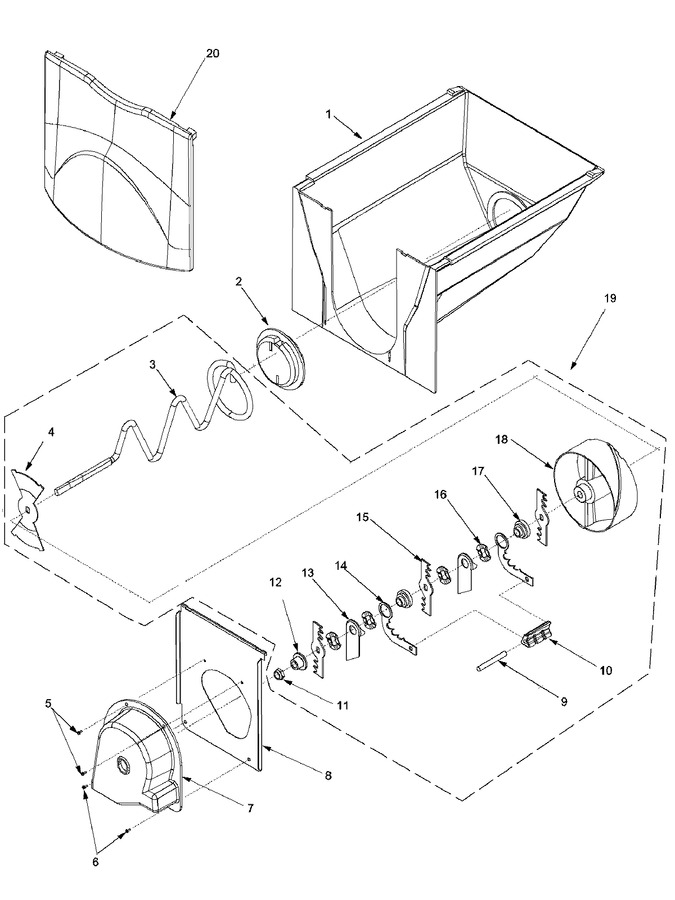

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67005959		Bucket, Ice Crush   (Replaces: 12517801)				$ 215.60
2	WPD7749401		Cap, Helix End   (Replaces: D7749401)				$ 24.87
3	10114401		Agitator, Ice				$ 107.74
4	10113801		Bar, Crsh Ice Bucket				$ 4.96
5	M0231704		Screw, Tf		Appelez-nous	-
6	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.26
7	67002271		Cover, Blade				$ 43.83
8	10115001		Front, Ice Crusher				$ 25.55
9	M1200108		Pin, Roll		Appelez-nous	-
10	10114101		Anchor, Blade		Appelez-nous	-
11	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 6.91
12	10113901		Spacer, Cover		Appelez-nous	-
13	10275201		Damper, Ice		Appelez-nous	-
14	10114601		Blade, Static		Appelez-nous	-
15	10114501		Blade, Rotating		Appelez-nous	-
16	10275101		Washer, Waved		Appelez-nous	-
17	10114301		Washer Stepped		Appelez-nous	-
18	67002052		Wheel, Crsh Ice				$ 24.40
19	WP12740302		Crushed Ice Agitator Assy   (Replaces: R0156803)				$ 453.92
20	12571606		Bucket, Ice Front		Appelez-nous	-
