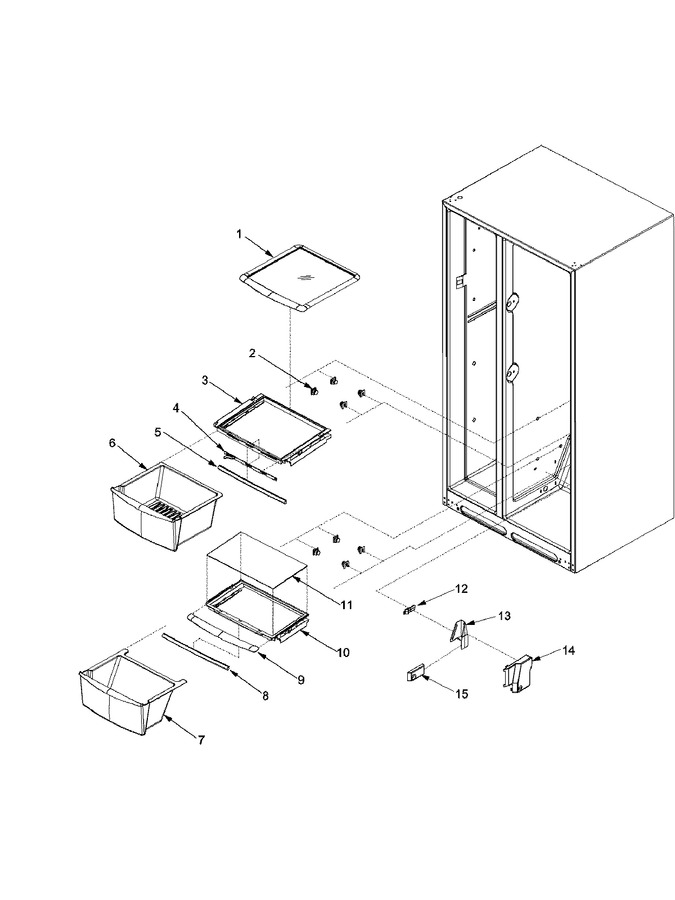

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003019		Shelf, Top Crisper		Appelez-nous	-
2	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 9.28
3	WP67002723		Frame, Lg Crisper   (Replaces: 67002723)				$ 149.76
4	12562601W		Slide, Lg Crisper (wht)		Appelez-nous	-
5	12589104		Seal, Sm Crisper Front		Appelez-nous	-
6	WP67001503		Pan, Lg Crisper   (Replaces: 67001503)				$ 132.98
7	WP67001504		Pan, Deli   (Replaces: 67001504)				$ 132.71
8	12589104		Seal, Sm Crisper Front		Appelez-nous	-
9	12562402		Trim, Deli Front		Appelez-nous	-
10	67002822		Frame, Deli		Appelez-nous	-
11	12204811		Glass, Shelf		Appelez-nous	-
12	12586201W		Control, Deli (wht)		Appelez-nous	-
13	12586101		Slide, Deli Control		Appelez-nous	-
14	12586003		Housing, Deli Control		Appelez-nous	-
15	12664201		Tunnel, Deli Control		Appelez-nous	-
16	12585704Q		Lg Crisper Frame Assy		Appelez-nous	-
17	12585804Q		Deli Frame Assy		Appelez-nous	-
