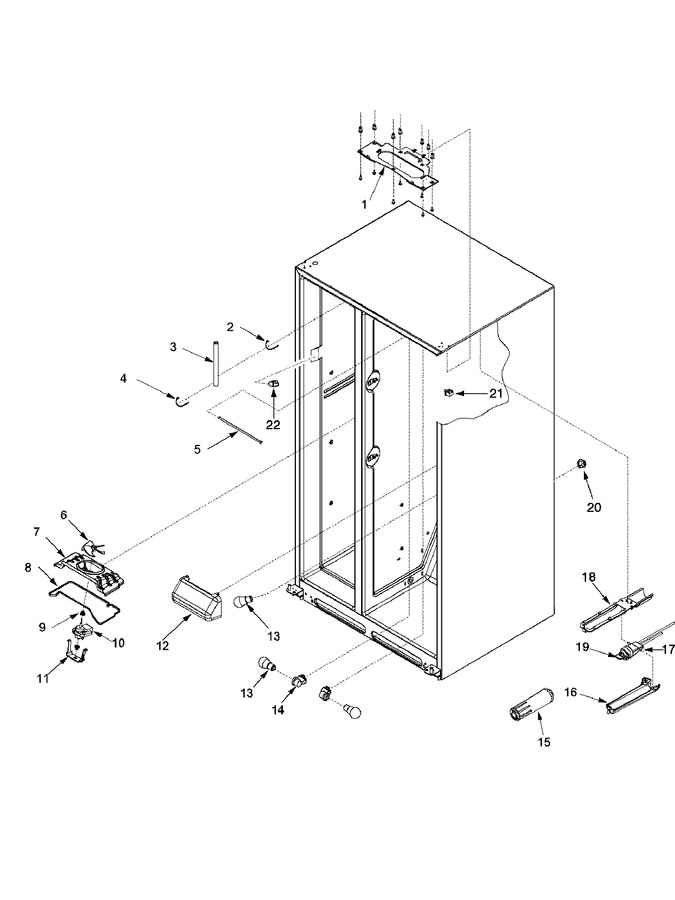

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 12.62
1	12666201		Plate, Light Backing		Appelez-nous	-
1	M0580007		Grommet, Screw		Appelez-nous	-
2	M0322202		Tie Wire		Appelez-nous	-
3	67002219		Insulation, Tubing		Appelez-nous	-
4	M0321210		Tie, Elec		Appelez-nous	-
5	12617601		Tube, Plastic		Appelez-nous	-
6	WP2169142		Fan, Evaporator   (Replaces: 12217201)			Immediately	$ 39.07
7	12590001		Shroud, Evap		Appelez-nous	-
8	67001508		Gasket		Appelez-nous	-
9	WP67002780		Grommet, Fan Motor   (Replaces: 12619301)				$ 7.03
10	WPW10128551		Motor, Evaporator Fan   (Replaces: 67001509)			Immediately	$ 70.88
11	12217805		Clip, Evap Motor		Appelez-nous	-
12	67001507		Shield, Crisper Light		Appelez-nous	-
13	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
14	12679501		Socket, Light		Appelez-nous	-
15	EDR4RXD1B		Filter, Water (generic)   (Replaces: 67002269)			Immediately	$ 49.99
16	WP12568001		Cover, Filter   (Replaces: 12568001)			Immediately	$ 78.08
17	67002378		Housing, Water Filter		Appelez-nous	-
18	67002379		Plate, Fltr Backing		Appelez-nous	-
19	67002886		Head, Bypass		Appelez-nous	-
20	W11447232		Socket, Light   (Replaces: Y12570701)			Immediately	$ 11.89
21	W11291138		Switch, Ref Light   (Replaces: 12466104)			Immediately	$ 33.00
22	W11396033		Switch, Light   (Replaces: 12466103)			Immediately	$ 33.57
