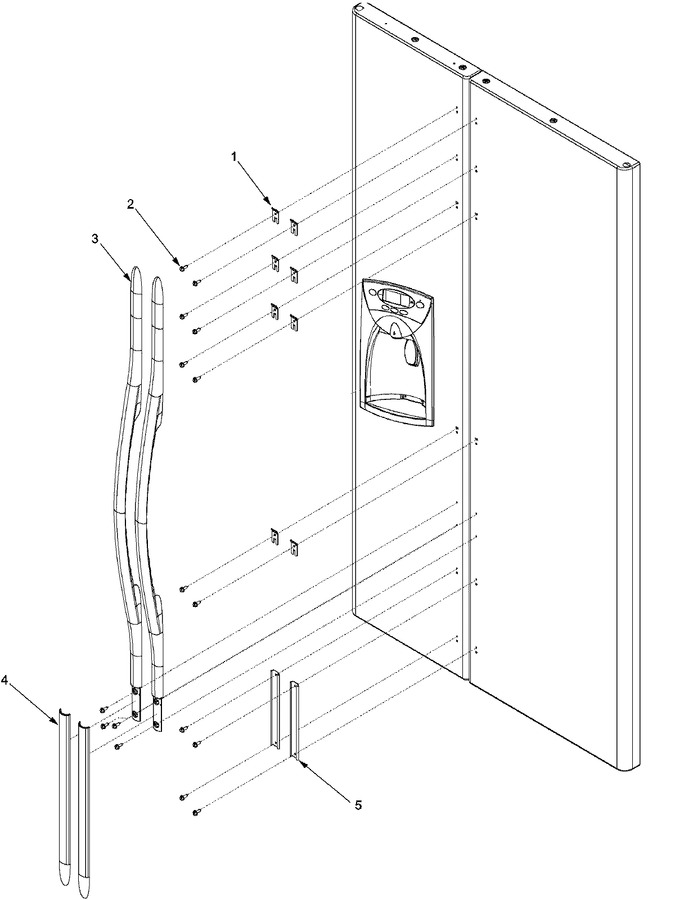

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12576403		Clip, Door Handle		Appelez-nous	-
2	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.26
3	67002034		Handle, Door (bsq)		Appelez-nous	-
4	12575901C		Trim, Handle (bsq)		Appelez-nous	-
5	12273808		Retainer, Trim		Appelez-nous	-
