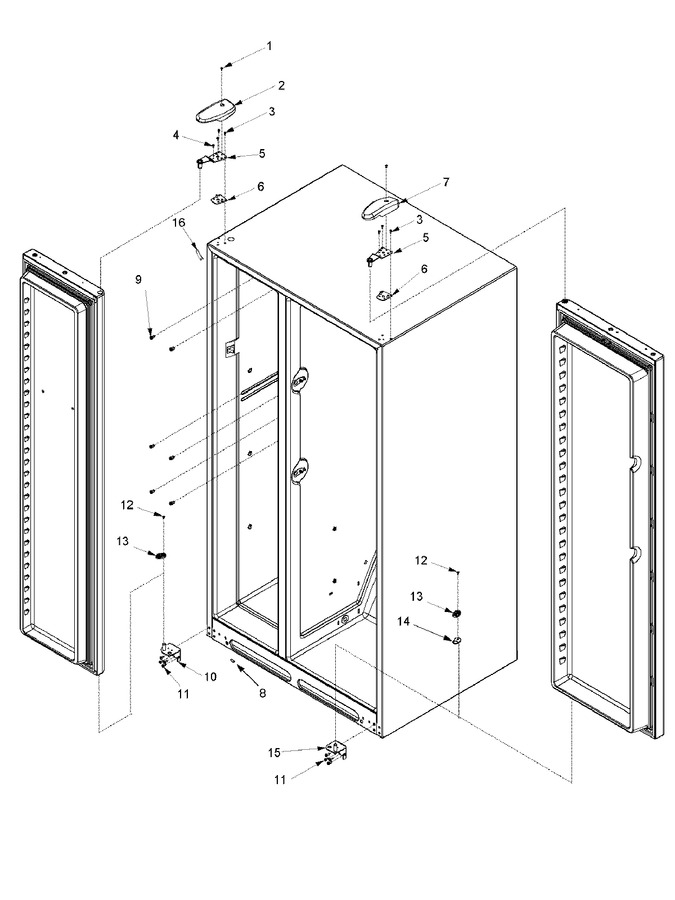

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 6.47
2	12684201C		Cover, Top Hinge (lt-bsq)		Appelez-nous	-
3	R9800670		Screw, Tf   (Replaces: M0238731)				$ 8.44
4	W11214483		Screw, Mach   (Replaces: M0202321)				$ 12.62
5	WP12566607ED		Hinge, Top (blk)   (Replaces: 12566603ED)				$ 78.08
6	12695601		Shim, Top Hinge		Appelez-nous	-
7	12684202C		Cover, Top Hinge (rt-bsq)		Appelez-nous	-
8	WP2300868		Tube, Union   (Replaces: B5706903)			Immediately	$ 26.15
9	M0581003		Grommet, Screw		Appelez-nous	-
10	12570905ED		Hinge, Bottom (lt-blk)		Appelez-nous	-
11	WP67006715		Screw, Sm   (Replaces: M0241608)				$ 6.47
12	W11227370		Screw, Tc   (Replaces: M0220431)			Immediately	$ 12.78
13	R0181181		Closure, Door (blk)   (Replaces: 12431302)			Immediately	$ 6.47
14	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)				$ 6.71
15	12570906ED		Hinge, Bottom (rt-blk)		Appelez-nous	-
16	12587702C		Cover, Corner (bsq)		Appelez-nous	-
