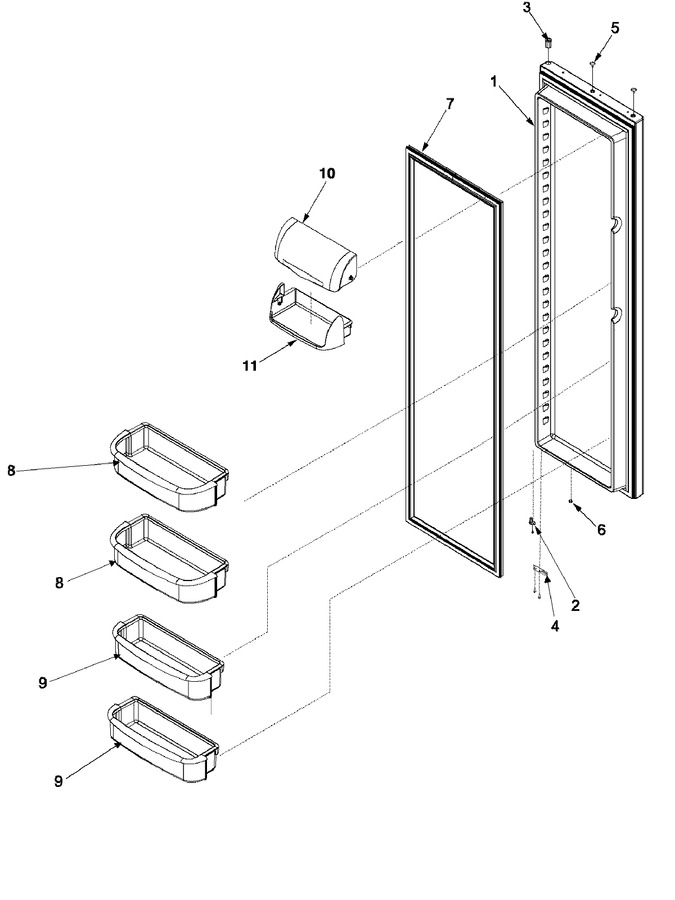

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12584701C		Ref Dr Foam Assy (bsq)		Appelez-nous	-
2	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 6.47
2	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 9.40
3	10961002		Bushing, Door (blk)		Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.20
4	12636401C		Stop, Door (bsq)		Appelez-nous	-
5	M0311606		Plug, Button (bsq)		Appelez-nous	-
6	A3080001		Plug, Button (blk)		Appelez-nous	-
7	12591501W		Gasket, Ref Dr (wht)		Appelez-nous	-
8	12556602		Bucket, Ref Door (gallon)				$ 36.35
9	67002374		Bucket, Ref Door (2l)		Appelez-nous	-
10	67001325		Door, Dairy		Appelez-nous	-
11	67002304		Tray, Dairy		Appelez-nous	-
