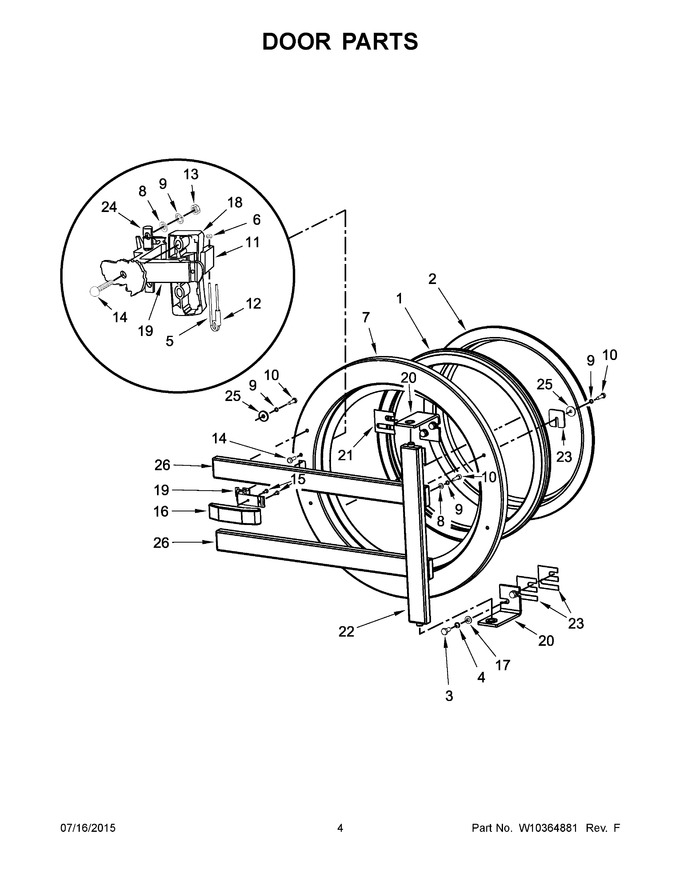

03 - Door Parts


04 - Door Lock Parts


05 - Control Panel Parts


06 - Electrical Components Parts


07 - Soap Hopper And Top Cover Parts


08 - Tub And Drum Parts


09 - Drain System Parts


10 - Rear Panel Parts


11 - Drive Parts


12 - Frame And Tub Support Parts


13 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292561		Door Seal		Appelez-nous	-
2	23004109		Door Glass		Appelez-nous	-
3	23002421		Screw				$ 1,050.80
4	23002727		Washer M8		Appelez-nous	-
5	23001169		Spring, Door Handle		Appelez-nous	-
6	23002499		Washer		Appelez-nous	-
7	W10286307		Door Frame		Appelez-nous	-
8	23002424		Washer M6.4		Appelez-nous	-
9	23001158		Washer M6		Appelez-nous	-
10	23002462		Bolt M6x20				$ 5.14
11	23001173		Door Handle, Guide		Appelez-nous	-
12	W10304861		Tube		Appelez-nous	-
13	23002280		Nut M6		Appelez-nous	-
14	23001175		Bolt M6x20 (handle Side)		Appelez-nous	-
15	23004113		Bolt M4x12		Appelez-nous	-
16	23003860		Door Handle Cover		Appelez-nous	-
17	23001608		Washer M8.4		Appelez-nous	-
18	23001370		Handle, Door Block With Pin		Appelez-nous	-
19	23003858		Latch, Door		Appelez-nous	-
20	W10286308		Hinge Complete		Appelez-nous	-
21	W10304862		Shim		Appelez-nous	-
22	23003094		Brace, Vertical Door Beam		Appelez-nous	-
23	W10286310		Shim		Appelez-nous	-
24	23001168		Shaft, Lever		Appelez-nous	-
25	W10431220		Washer		Appelez-nous	-
26	W10286312		Brace, Horizontal Door Beam		Appelez-nous	-
