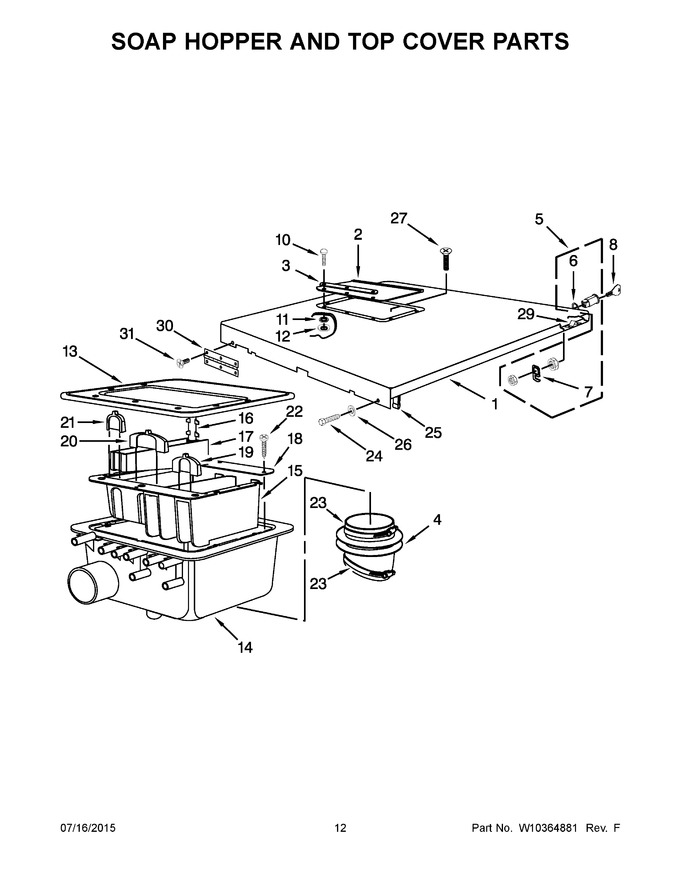

07 - Soap Hopper And Top Cover Parts


08 - Tub And Drum Parts


09 - Drain System Parts


10 - Rear Panel Parts


11 - Drive Parts


12 - Frame And Tub Support Parts


13 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004392		Panel, Top		Appelez-nous	-
2	23002111		Dispenser Cover   (Replaces: 23001003)			Immediately	$ 221.87
3	23003781		Dispenser Cover Retainer		Appelez-nous	-
4	WP23004115		Hopper To Tub Hose   (Replaces: 23004187)				$ 130.20
5	23001006		Door Lock		Appelez-nous	-
6	23001007		Washer		Appelez-nous	-
7	23001009		Hook, Lock		Appelez-nous	-
8	23002673		Key, Door Lock				$ 1,792.62
10	23001012		Bolt M4x12				$ 13.48
11	23001013		Lock Washer M4		Appelez-nous	-
12	23002652		Nut M4		Appelez-nous	-
13	23001015		Soap Hopper Gasket		Appelez-nous	-
14	23001016		External Soap Hopper		Appelez-nous	-
15	23001017		Soap Hopper Insert		Appelez-nous	-
16	23001018		Syphon Hose		Appelez-nous	-
17	23001019		Fabric Softener Insert		Appelez-nous	-
18	23001020		Insert Retainer		Appelez-nous	-
19	23001021		Prewash Diverter		Appelez-nous	-
20	23001022		Mainwash Diverter		Appelez-nous	-
21	23001023		Fabric Softener Diverter		Appelez-nous	-
22	23003782		Screw				$ 3.66
23	WP696392		Hose Clamp (90-110)   (Replaces: 23001025)				$ 7.31
24	23004488		Screw St4.8x25		Appelez-nous	-
25	23004481		Tinnerman Clip		Appelez-nous	-
26	23002756		Lockwasher, M6		Appelez-nous	-
27	23003484		Bolt M5x16				$ 5.27
29	23001032		Spring Clip		Appelez-nous	-
30	23004103		Hinge		Appelez-nous	-
31	W10304856		Bolt M4x12		Appelez-nous	-
