Diagram for 13 - Trunnion Parts
13 - Trunnion Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 23003615 Bearing (6309) Appelez-nous -
2 23003608 Ring, Counter Appelez-nous -
3 23003607 Plate, Pressure Appelez-nous -
4 23003609 Housing, Bearing Appelez-nous -
5 23003610 Ring, Joint Appelez-nous -
6 23004412 Seal Appelez-nous -
7 8169480 Screw, (m5x12)   (Replaces: 23001184) Special Order $ 11.15

8 23003612 Ring, Securing (d110) Appelez-nous -
9 23003613 Ring, Securing (d100) Appelez-nous -
10 23003614 Bearing (6310) Appelez-nous -
11 23003616 Seal, Axial Appelez-nous -
12 23001201 Washer M22x11x1 Special Order $ 303.26

13 23003354 Bolt M10x25 Appelez-nous -
14 23004413 Housing, Bearing Complete Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

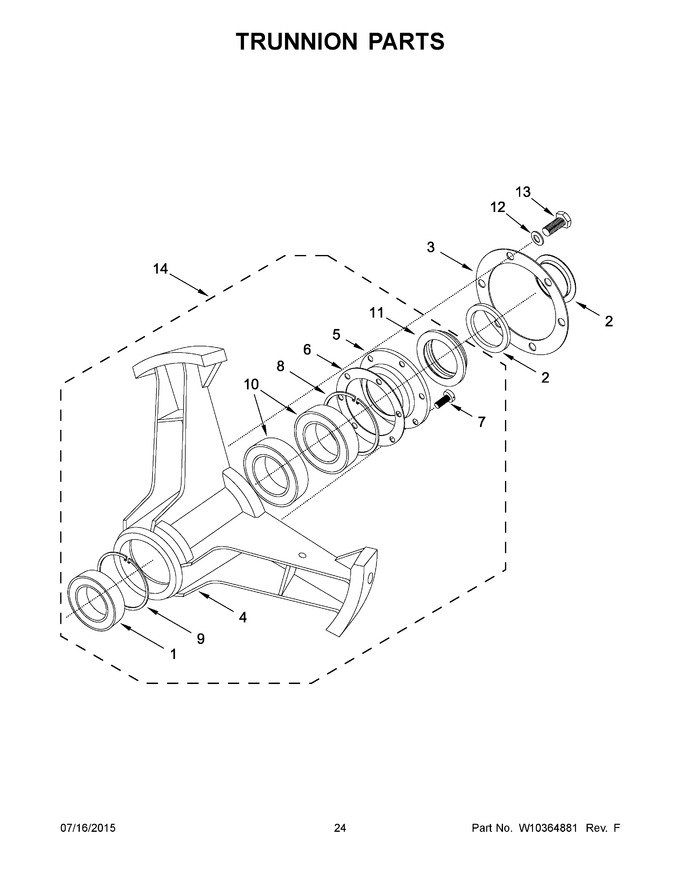

Diagram for MFS35PDFTS
