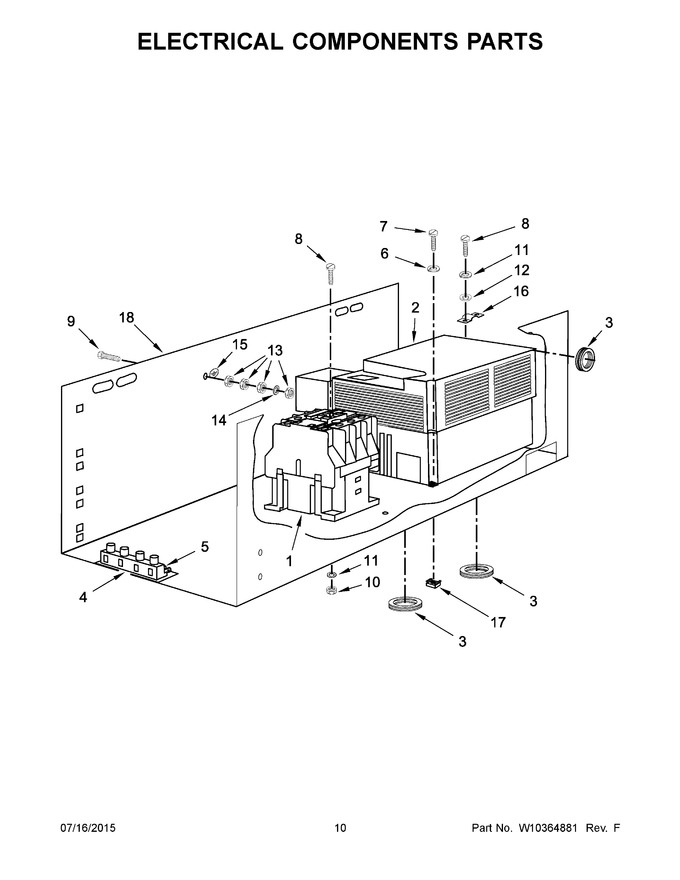

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23003750		Contactor Lc1 D09m7		Appelez-nous	-
2	23004080		Frequency Inverter Parts		Appelez-nous	-
3	23001117		Grommet, Rubber		Appelez-nous	-
4	23001113		Terminal Block		Appelez-nous	-
5	23001115		Terminal Block Insulation		Appelez-nous	-
6	23001708		Washer M5.3		Appelez-nous	-
7	23004497		Bolt M5x16		Appelez-nous	-
8	W10295997		Bolt M4x16   (Replaces: 23001089)				$ 6.27
9	23002806		Bolt M6x25		Appelez-nous	-
10	23001014		Nut M4		Appelez-nous	-
11	23002865		Washer, Lock M4		Appelez-nous	-
12	23002504		Washer M4		Appelez-nous	-
13	23001312		Nut M6		Appelez-nous	-
14	23001734		Washer, Lock M6		Appelez-nous	-
15	23002505		Grounding Plate		Appelez-nous	-
16	23004094		Clip, U		Appelez-nous	-
17	23001448		Nut M5		Appelez-nous	-
18	23004386		Controls Mounting		Appelez-nous	-
2A	W10415735		Frequency Inverter Parts		Appelez-nous	-
2B	W10357136		Frequency Inverter Parts (communication Cable)		Appelez-nous	-
NI	WPW10357137		Main Harness (starting With Series 22)   (Replaces: W10357137)				$ 517.20
NI	23004163		Door Lock Harness		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	23003991		Mc4 Opl Ccu		Appelez-nous	-
