Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 23003897 Tub Appelez-nous -
2 23004410 Drum, Inner Tub Appelez-nous -
3 23003536 Bellow Appelez-nous -
4 23003537 Tub Clamp Parts (bellow To Tub Clamp) Appelez-nous -
6 23003539 Balance Switch Grommet Appelez-nous -
7 23004000 Bolt M6x60 Appelez-nous -
8 23003079 Bolt M12x40 Appelez-nous -
9 23001309 Washer M6.4x17x3 Appelez-nous -
10 23004146 Washer M12 Appelez-nous -
11 23002756 Lockwasher, M6 Appelez-nous -
12 23001312 Nut M6 Appelez-nous -
13 23003606 Nut M16 Appelez-nous -
15 23001594 Heating Element Hole Plug Appelez-nous -
16 23004142 Clamp, Retaining Ring Appelez-nous -
17 23004411 Plate, Front Outer Drum Appelez-nous -
18 23004141 Tub-front Clamp Appelez-nous -
19 23004148 Funnel Appelez-nous -
20 23003911 Balance Switch Grommet Support Appelez-nous -
29 23003899 Switch, Micro Appelez-nous -
30 23003831 Temperature Sensor Must Also Order Key # 31 Appelez-nous -
31 W10382922 Temperature, Sensor Holder Appelez-nous -
32 23002179 Washer Appelez-nous -
34 23003902 Spacer M7x10 Appelez-nous -
35 23003903 Screw M3 X 25 Appelez-nous -
36 23001053 Nut (m3) Appelez-nous -
37 23003904 Spring Holder, Tilt Switch Appelez-nous -
38 23003900 Spring Appelez-nous -
39 23002951 Washer, Fiber Appelez-nous -
40 23003901 Large Balance Switch Spring Appelez-nous -
41 W10427109 Support, Tilt Switch Appelez-nous -
42 23004414 Tilt Switch, Complete Appelez-nous -
4A W10357140 Tub Clamp Parts (assembly Ring Plate) Appelez-nous -
NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10382923 O Ring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

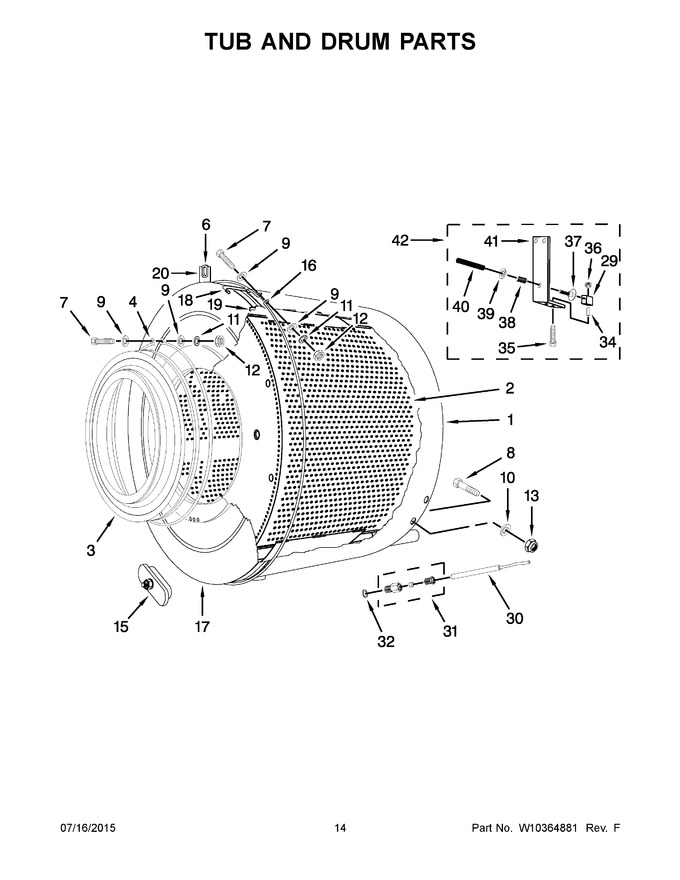

Diagram for MFS35PDFTS
