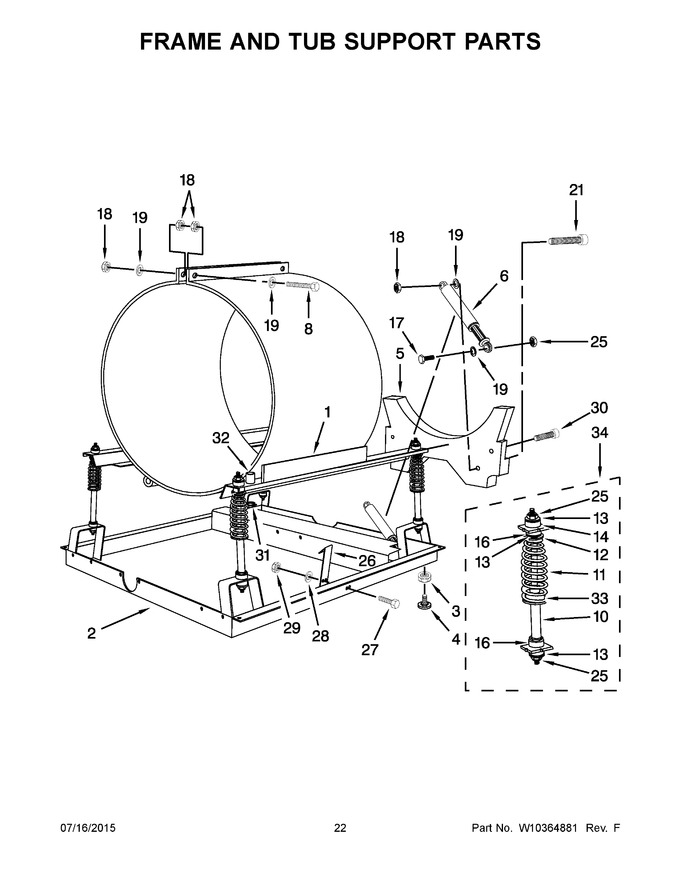

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004462		Tub Support		Appelez-nous	-
2	23004463		Frame		Appelez-nous	-
3	DC60-50145A		Nut M10   (Replaces: 23001661)				$ 2.39
4	23003458		Washer Foot		Appelez-nous	-
5	23004464		Counterweight		Appelez-nous	-
6	23002983		Shock Absorber				$ 392.15
8	23002984		Bolt M10x80		Appelez-nous	-
10	23003451		Spring Support		Appelez-nous	-
11	23003457		Red Spring		Appelez-nous	-
12	23003454		Upper Spring Holder		Appelez-nous	-
13	23001282		Rubber Washer   (Replaces: 23003455)				$ 15.36
14	23003456		Upper Rubber Spacer		Appelez-nous	-
16	23003459		Lower Rubber Spacer		Appelez-nous	-
17	23003285		Bolt M10x50		Appelez-nous	-
18	DC60-50145A		Nut M10   (Replaces: 23001661)				$ 2.39
19	23003788		Washer M10.5		Appelez-nous	-
21	23004465		Bolt M10x120		Appelez-nous	-
25	23002356		Nut (m10)		Appelez-nous	-
26	23004466		Hose Support		Appelez-nous	-
27	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
28	23002756		Lockwasher, M6		Appelez-nous	-
29	23001312		Nut M6		Appelez-nous	-
30	W10361724		Bolt M12x40		Appelez-nous	-
31	23002212		Bushing Nut		Appelez-nous	-
32	W10357103		Harness Bushing		Appelez-nous	-
33	23003465		Lower Spring Holder		Appelez-nous	-
34	23004373		Spring Support, Complete		Appelez-nous	-
