SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet And Coin Box Parts


03 - Door Parts


04 - Door Lock Parts


05 - Control Panel Parts


06 - Electrical Components Parts


07 - Soap Hopper And Top Cover Parts


08 - Tub And Drum Parts


09 - Drain System Parts


10 - Rear Panel Parts


11 - Drive Parts


12 - Frame And Tub Support Parts


13 - Trunnion Parts

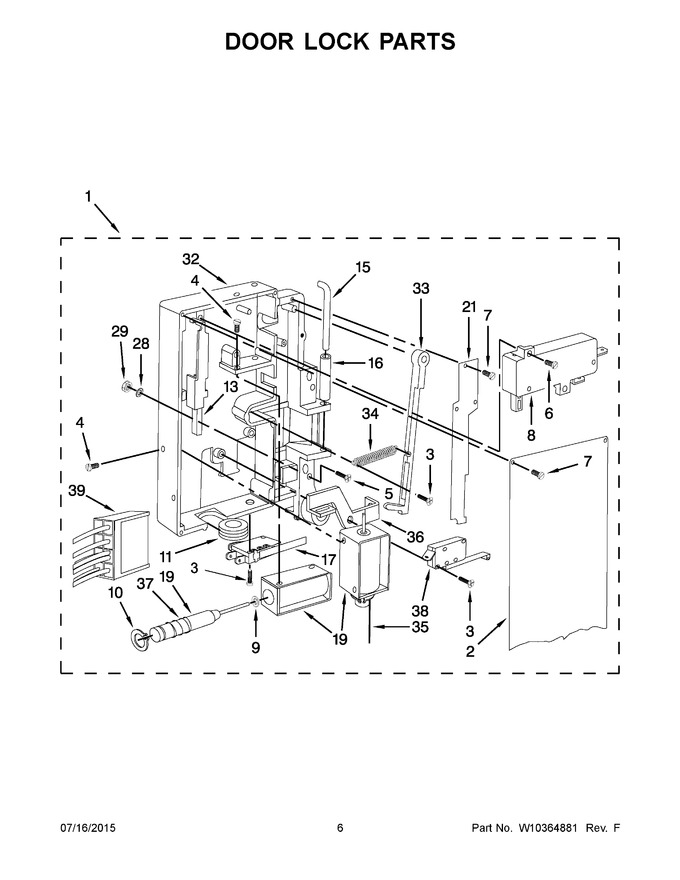

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23003861		Door Lock Complete		Appelez-nous	-
2	W10357120		Door Lock Cover Plate		Appelez-nous	-
3	23001131		Bolt M3x14		Appelez-nous	-
4	23002869		Bolt M3x6		Appelez-nous	-
5	23001133		Bolt M5x25		Appelez-nous	-
6	23003114		Bolt M4x8		Appelez-nous	-
7	23002869		Bolt M3x6		Appelez-nous	-
8	23001135		Bimetal Switch Assembly		Appelez-nous	-
9	23001136		Washer M5.1x3.3x0.1		Appelez-nous	-
10	23001137		Snap Ring		Appelez-nous	-
11	23001138		Bushing, Cable Passage		Appelez-nous	-
13	23001140		Locking, Bar		Appelez-nous	-
15	23001142		Latch Roller Pin		Appelez-nous	-
16	23001143		Latch Roller		Appelez-nous	-
17	23001145		Switch, Door Closed		Appelez-nous	-
19	23001146		Solenoid		Appelez-nous	-
21	23001149		Leaf Spring		Appelez-nous	-
28	23004485		Lock Washer M5		Appelez-nous	-
29	23004486		Nut M5		Appelez-nous	-
32	Y23002898		Door Lock Housing		Appelez-nous	-
33	23002899		Actuator Arm		Appelez-nous	-
34	23001148		Actuator Arm Spring		Appelez-nous	-
35	23001152		Emergency Opening Cord			Immediately	$ 458.78
36	23002902		Emergency Opening Lever		Appelez-nous	-
37	23002903		Spring, Solenoid		Appelez-nous	-
38	23002337		Microswitch		Appelez-nous	-
39	23002905		Door Lock Wire Harness Mc4		Appelez-nous	-
39A	W10286305		Door Lock Wire Harness Mc5 (starting With Series 22)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	23003863		Microswitch Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
