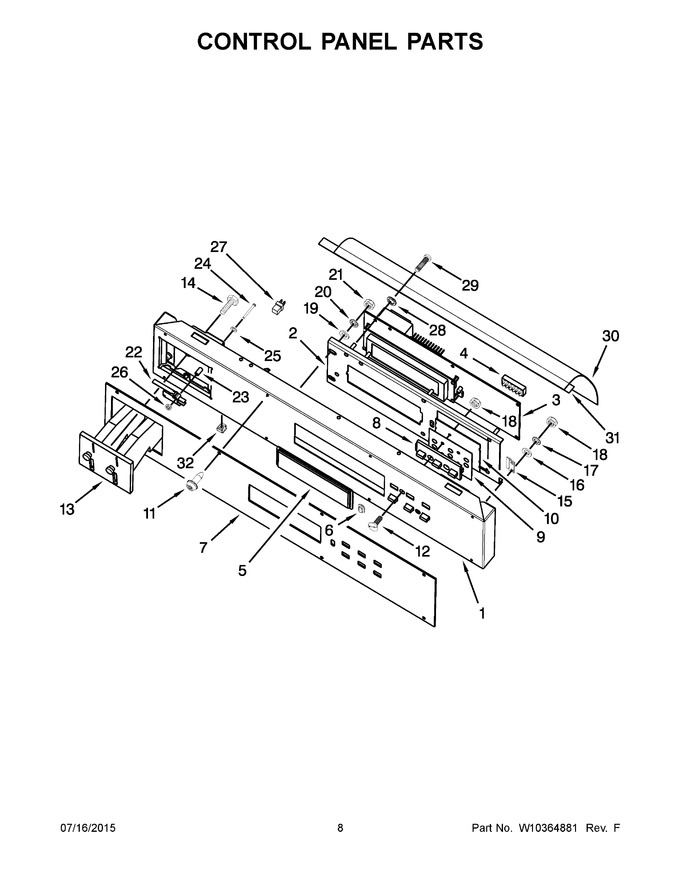

05 - Control Panel Parts


06 - Electrical Components Parts


07 - Soap Hopper And Top Cover Parts


08 - Tub And Drum Parts


09 - Drain System Parts


10 - Rear Panel Parts


11 - Drive Parts


12 - Frame And Tub Support Parts


13 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004302		Control Panel Coin		Appelez-nous	-
2	23004117		Control Board Bracket		Appelez-nous	-
3	23004118		Control Board (mc4 Coin Ccu)		Appelez-nous	-
4	W10165003		Mc4 Coin Program Chip		Appelez-nous	-
5	23004119		Display Lens		Appelez-nous	-
6	23004120		Infrared Lens		Appelez-nous	-
7	W10592894		Fascia Panel		Appelez-nous	-
8	23003646		3 Button Assembly		Appelez-nous	-
9	23004122		Membrane Switch		Appelez-nous	-
10	23004123		Membrane Switch Plate		Appelez-nous	-
11	WPW10131119		Screw M4x13   (Replaces: 23003810)				$ 6.26
12	23003793		Screw M4x12		Appelez-nous	-
13	23004124		Coin Drop Assembly (.25 Cent)		Appelez-nous	-
14	23003797		Retaining Bolt		Appelez-nous	-
15	23004125		Z Clip		Appelez-nous	-
16	23002438		Washer M4.3		Appelez-nous	-
17	23002865		Washer, Lock M4		Appelez-nous	-
18	23001014		Nut M4		Appelez-nous	-
19	23002756		Lockwasher, M6		Appelez-nous	-
20	23003778		Washer, Lock		Appelez-nous	-
21	23001312		Nut M6		Appelez-nous	-
22	23001145		Switch, Door Closed		Appelez-nous	-
23	23003653		Spacer		Appelez-nous	-
24	23003652		Bolt M3x30		Appelez-nous	-
25	23003654		Washer M3.2		Appelez-nous	-
26	23002958		Nut M3		Appelez-nous	-
27	W10357118		Connector, Emergency Stop		Appelez-nous	-
28	23002865		Washer, Lock M4		Appelez-nous	-
29	23002869		Bolt M3x6		Appelez-nous	-
30	23002877		Shield, Rain		Appelez-nous	-
31	23004126		Double-sided Tape		Appelez-nous	-
32	23002455		Nut, M6		Appelez-nous	-
13A	23004075		Dual Coin Drop Assembly (canada)		Appelez-nous	-
13B	23004167		Coin Drop Assembly (optic Switch)		Appelez-nous	-
3A	W10343020		Control Board (mc5 Coin Ccu)		Appelez-nous	-
4A	W10387042		Mc5 Coin Program Chip		Appelez-nous	-
NI	W10357119		Coin To Opl Conversion Kit		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
