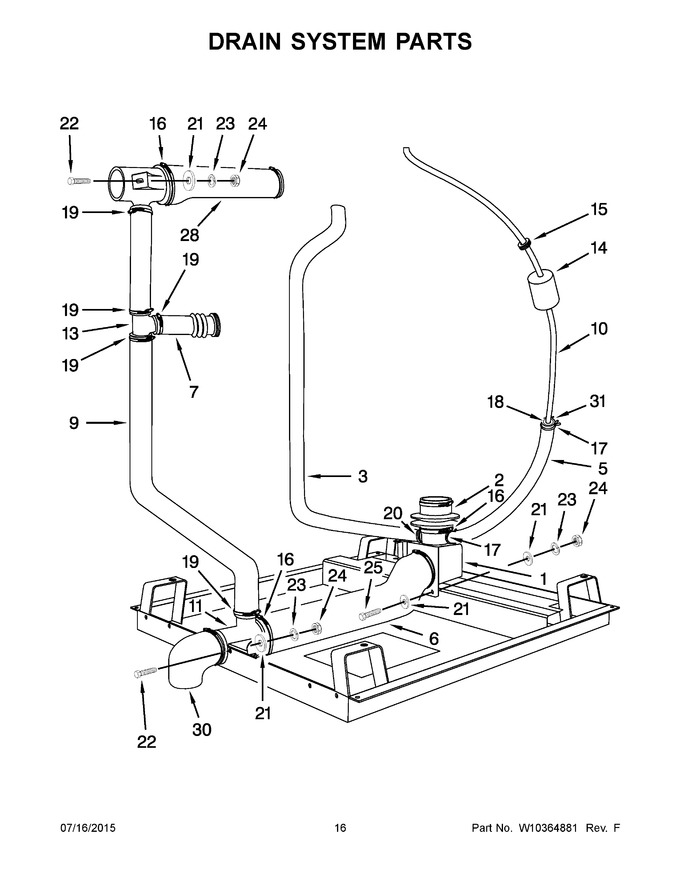

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23001244		Drain Valve (complete)				$ 2,768.25
2	23001245		Tub To Drain Hose				$ 59.66
3	W10357129		Hopper To Drain Valve Hose		Appelez-nous	-
5	23001246		Lower Hose, Pressure Switch		Appelez-nous	-
6	23001249		Drain Valve Outlet Hose		Appelez-nous	-
7	23001250		Corrugated Vent Hose		Appelez-nous	-
9	23001251		Lower Overflow Hose		Appelez-nous	-
10	23001252		Upper Hose, Pressure Switch		Appelez-nous	-
11	23001253		Large T		Appelez-nous	-
13	23001255		Small T		Appelez-nous	-
14	23004491		Larger Bumper		Appelez-nous	-
15	23001138		Bushing, Cable Passage		Appelez-nous	-
16	WP696392		Hose Clamp   (Replaces: 696392)				$ 7.31
17	WP285655		Hose Clamp   (Replaces: 23001259)			Immediately	$ 7.55
18	23001260		Pressure Switch Hose Fitting		Appelez-nous	-
19	23001750		Hose Clamp (40-60)		Appelez-nous	-
20	HS24		Clamp, Hose   (Replaces: 616099)			Immediately	$ 1.22
21	23002437		Washer M8		Appelez-nous	-
22	23001264		Bolt M8x20		Appelez-nous	-
23	23002358		Washer, Lock M8		Appelez-nous	-
24	23003766		Nut M8		Appelez-nous	-
25	23002908		Bolt M8x120		Appelez-nous	-
28	23004241		Hopper To T-hose		Appelez-nous	-
30	23002015		Drain Elbow		Appelez-nous	-
31	WP596669		Clamp, Hose   (Replaces: 596669)			Immediately	$ 7.56
1A	W10126968		Drain Valve (no Motor)		Appelez-nous	-
1B	W10357127		Drain Valve (motor Only)				$ 345.51
