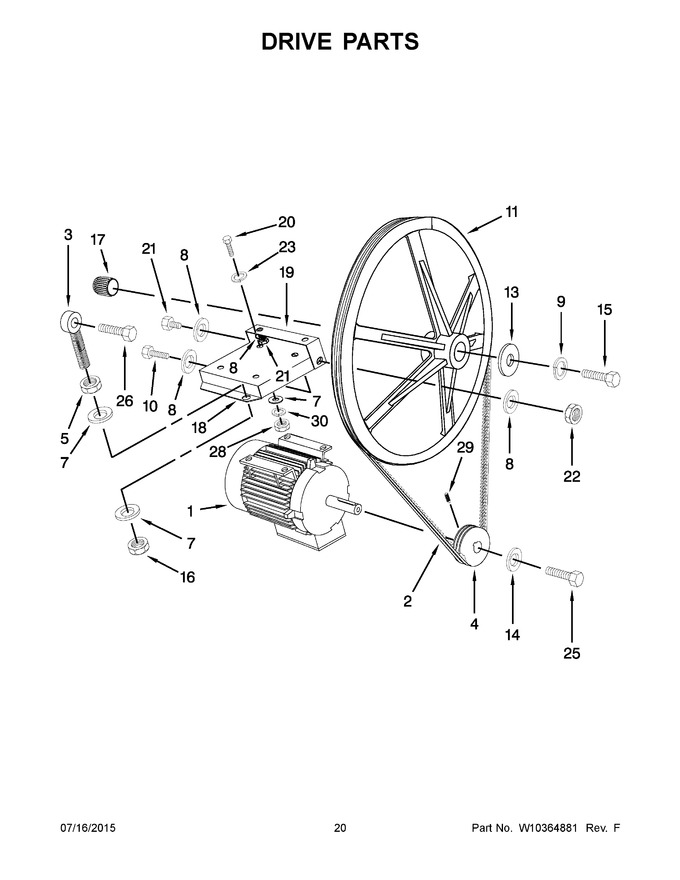

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004082		Motor, Drive		Appelez-nous	-
2	23004403		V-belt		Appelez-nous	-
3	W10286331		Eye Bolt (m16x90)		Appelez-nous	-
4	23004506		Motor Pulley		Appelez-nous	-
5	23004281		Nut M16		Appelez-nous	-
7	23003403		Washer M17x40x3		Appelez-nous	-
8	23004023		Washer M10		Appelez-nous	-
9	23002658		Washer M12		Appelez-nous	-
10	23003285		Bolt M10x50		Appelez-nous	-
11	23001415		Drum Pulley		Appelez-nous	-
13	23004146		Washer M12		Appelez-nous	-
14	23003788		Washer M10.5		Appelez-nous	-
15	23001418		Bolt M12x25		Appelez-nous	-
16	23004281		Nut M16		Appelez-nous	-
17	23001410		Tolerance Ring		Appelez-nous	-
18	23004507		Motor Mtg Plate		Appelez-nous	-
19	23004508		Motor Mounting Bracket		Appelez-nous	-
20	23001305		Bolt M8x25		Appelez-nous	-
21	23001905		Bolt M10x25		Appelez-nous	-
22	DC60-50145A		Nut M10   (Replaces: 23001661)				$ 2.39
23	23001203		Washer M8.4x24x2		Appelez-nous	-
25	23001264		Bolt M8x20		Appelez-nous	-
26	23004040		Bolt M16x50		Appelez-nous	-
28	23003766		Nut M8		Appelez-nous	-
29	23004509		Screw M8x10		Appelez-nous	-
30	23002358		Washer, Lock M8		Appelez-nous	-
NI	23004498		Motor Harness		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
