SELECT A DIAGRAM
New Model Search:

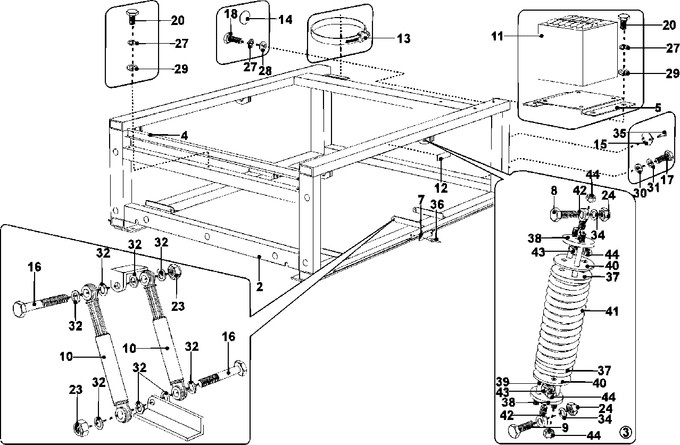

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 002 | 23002339 | Frame | 10 |
|
- | ||||
| 003 | 23002341 | Spring Hinge Assy. | 10 |
|
- | ||||
| 004 | 23003914 | Frame | 10 |
|
- | ||||
| 005 | 23002343 | Holder, Transformer | 10 |
|
- | ||||
| 007 | NLA | Plate, Small | 10 |
|
- | ||||
| 008 | NLA | Screw | 10 |
|
- | ||||
| 009 | NLA | Screw | 10 |
|
- | ||||
| 010 | 23002347 | Damper | 10 |
|
- | ||||
| 011 | 23002348 | Transformer, Control Circuit | 10 |
|
$ 190.25 | ||||
| 012 | 23001567 | Sheet, Anti-vibration | 10 |
|
- | ||||
| 013 | 23001750 | Ring, Clamp (40-60) | 10 |
|
- | ||||
| 014 | 23002505 | Plate, Earth | 10 |
|
- | ||||
| 015 | NLA | Plate, Index | 10 |
|
- | ||||
| 016 | 23002351 | Screw (m10x80) | 10 |
|
- | ||||
| 017 | 23002421 | Screw (m8 X 15) | 10 |
|
$ 1,050.80 | ||||
| 018 | 23002422 | Screw (m6 X 12) | 10 |
|
- | ||||
| 020 | 23004114 | Screw (m6 X16) (Replaces: 23002461) | 10 |
|
- | ||||
| 023 | 23002356 | Nut M10 | 10 |
|
- | ||||
| 024 | 23001651 | Nut (m16) | 10 |
|
- | ||||
| 027 | 23001651 | Nut (m16) | 10 |
|
- | ||||
| 028 | 23002424 | Washer | 10 |
|
- | ||||
| 029 | 23003774 | Washer 12 | 10 |
|
- | ||||
| 030 | 23002439 | Washer, Spring Lock (8) | 10 |
|
- | ||||
| 031 | 23001608 | Washer (m8) Lu | 10 |
|
- | ||||
| 032 | 23003788 | Washer | 10 |
|
- | ||||
| 034 | 23001735 | Washer M17 | 10 |
|
- | ||||
| 035 | 23003915 | Nail 2x4 | 10 |
|
- | ||||
| 036 | 23002362 | Rivet W/crank | 10 |
|
- | ||||
| 037 | 23002363 | Sleeve | 10 |
|
- | ||||
| 038 | 23002364 | Disk | 10 |
|
- | ||||
| 039 | NLA | Bar, Drawing | 10 |
|
- | ||||
| 040 | 23002366 | Packing Piece | 10 |
|
- | ||||
| 041 | 23003917 | Spring | 10 |
|
- | ||||
| 042 | 23002368 | Screw, Eye | 10 |
|
- | ||||
| 043 | 23001651 | Nut (m16) | 10 |
|
- | ||||
| 044 | 23002356 | Nut M10 | 10 |
|
- |
