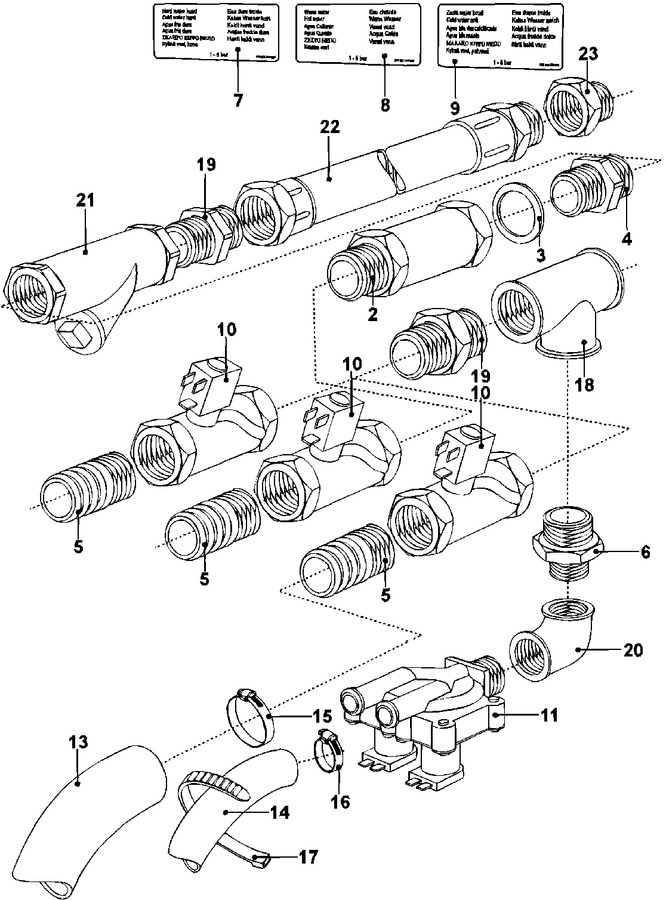

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23002757		Extension	10	Appelez-nous	-
003	23002758		Washer	10	Appelez-nous	-
004	23002759		Nipple, Pipe	10	Appelez-nous	-
005	23002760		Ontube	10	Appelez-nous	-
006	23002761		Reducer	10	Appelez-nous	-
007	23001471		Sticker, Cold Soft Water	10			$ 1,387.22
008	23001469		Sticker, Hot Water	10			$ 1,212.53
009	NLA		Sticker, Cold Hard Water	10	Appelez-nous	-
010	23002762		Valve	10			$ 729.39
011	23003875		Valve, 2 Way	10			$ 57.93
013	23002755		Hose	10	Appelez-nous	-
014	23001507		Waterhose (green)	10	Appelez-nous	-
015	WP616099		Clamp, Hose (32-50)   (Replaces: 23001261)	10		Immediately	$ 7.03
016	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
017	23001720		Binder, Cable	10	Appelez-nous	-
018	23002069		T-part (1``)	10	Appelez-nous	-
019	23002068		Nipple (1``)	10	Appelez-nous	-
020	23001756		Elbow (3/4``)	10	Appelez-nous	-
021	23002156		Filter	10	Appelez-nous	-
022	23002057		Hose, Water Inlet	10	Appelez-nous	-
023	23001256		Clamp, Hose (60-80)	10	Appelez-nous	-
