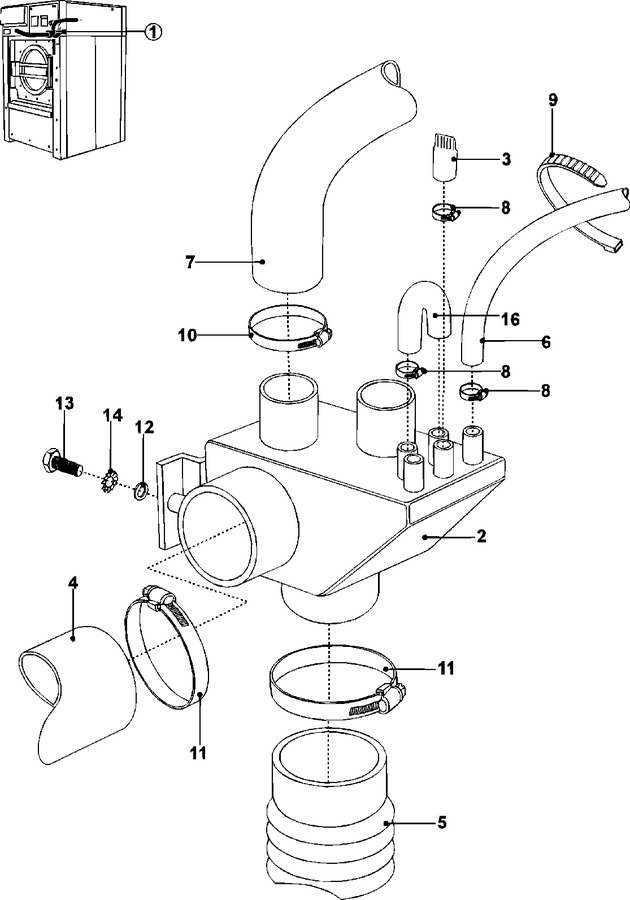

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003232		Knot, Mixing	10	Appelez-nous	-
002	23002752		Mixer	10	Appelez-nous	-
003	23001459		Liquid Soap, Hose	10	Appelez-nous	-
004	23001589		Tube, Soap Box (1=210mm)	10	Appelez-nous	-
005	23003934		Hose, Rubber	10	Appelez-nous	-
006	23001459		Liquid Soap, Hose	10	Appelez-nous	-
007	23002755		Hose	10	Appelez-nous	-
008	NLA		Clamp (10-16/7.5)	10	Appelez-nous	-
009	23001720		Binder, Cable	10	Appelez-nous	-
010	WP616099		Clamp, Hose (32-50)   (Replaces: 23001261)	10		Immediately	$ 7.03
011	23001256		Clamp, Hose (60-80)	10	Appelez-nous	-
012	23003774		Washer 12	10	Appelez-nous	-
013	23002463		Screw (m6 X 30)	10	Appelez-nous	-
014	23002756		Washer	10	Appelez-nous	-
016	23001459		Liquid Soap, Hose	10	Appelez-nous	-
