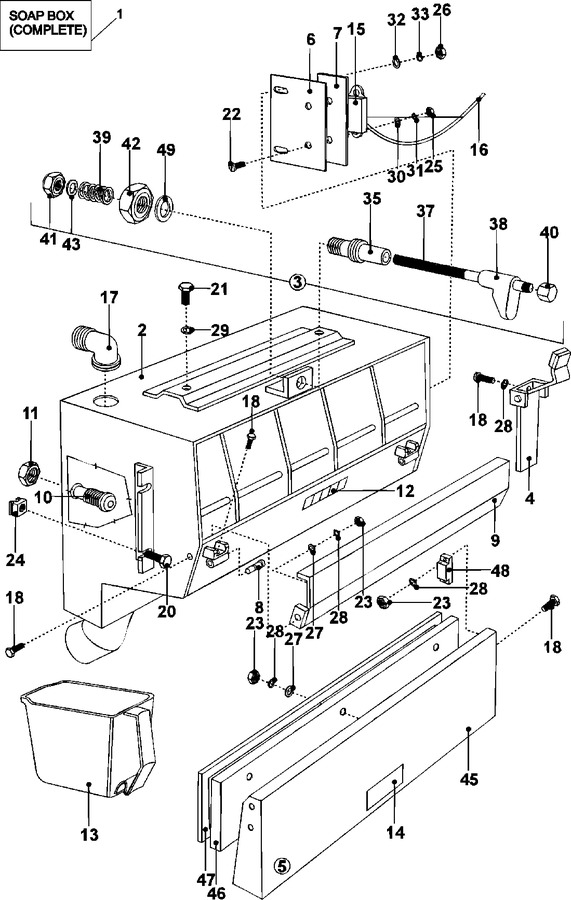

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003230		Soap Box (complete)	10	Appelez-nous	-
001	23003956		Soaphopper, Cmplt Low	10	Appelez-nous	-
002	23002731		Soaphopper	10	Appelez-nous	-
003	23003957		Soaphopper, Lock	10	Appelez-nous	-
004	23003958		Overseal, Low Preasure	10	Appelez-nous	-
004	NLA		Overseal	10	Appelez-nous	-
005	23002733		Cover, Soaphopper	10	Appelez-nous	-
006	NLA		Holder	10	Appelez-nous	-
007	23002735		Insulation	10	Appelez-nous	-
008	23002736		Pin, Door	10	Appelez-nous	-
009	23002737		Cover	10	Appelez-nous	-
010	23002738		Nozzle	10	Appelez-nous	-
011	23002739		Nut	10	Appelez-nous	-
012	NLA		Label, Soap Box	10	Appelez-nous	-
013	23002135		Cup, Soap Box	10	Appelez-nous	-
014	NLA		Plate, Index	10	Appelez-nous	-
015	23001566		Switch, Magnetic	10	Appelez-nous	-
016	23002742		Tube, Insulation	10	Appelez-nous	-
017	NLA		Elbow	10	Appelez-nous	-
018	23001682		Screw (m4x6)	10	Appelez-nous	-
020	23002422		Screw (m6 X 12)	10	Appelez-nous	-
021	NLA		Screw (m6x10)	10	Appelez-nous	-
022	NLA		Screw (m3x10)	10	Appelez-nous	-
023	23002652		Nut (qty Of 4 = 1 Piece)	10	Appelez-nous	-
024	23002455		Nut, Rapid (m6)	10	Appelez-nous	-
025	23002958		Nut M3	10	Appelez-nous	-
026	23003666		Nut (m4)	10	Appelez-nous	-
027	23002129		Washer (m4)	10	Appelez-nous	-
028	23002674		Spring, Lock Washer	10			$ 1,104.18
029	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
030	23003654		Washer (m3)	10	Appelez-nous	-
031	NLA		Washer	10	Appelez-nous	-
032	23002438		Washer (m6)	10	Appelez-nous	-
033	23002400		Washer	10	Appelez-nous	-
035	23002747		Pin	10	Appelez-nous	-
037	23002748		Screw	10	Appelez-nous	-
038	23003865		Lever, Safety	10	Appelez-nous	-
039	23002750		Spring	10	Appelez-nous	-
040	NLA		Nut (m6)	10	Appelez-nous	-
041	23002471		Nut	10	Appelez-nous	-
042	NLA		Nut (m12)	10	Appelez-nous	-
043	23003774		Washer 12	10	Appelez-nous	-
045	23003231		Cover, Soap Box (complete)	10	Appelez-nous	-
046	23002751		Cover, Insert	10	Appelez-nous	-
047	23001666		Seal (10x20x1130) Lu	10	Appelez-nous	-
048	23001668		Contact, Magnetic	10	Appelez-nous	-
049	23002658		Washer (12)	10	Appelez-nous	-
