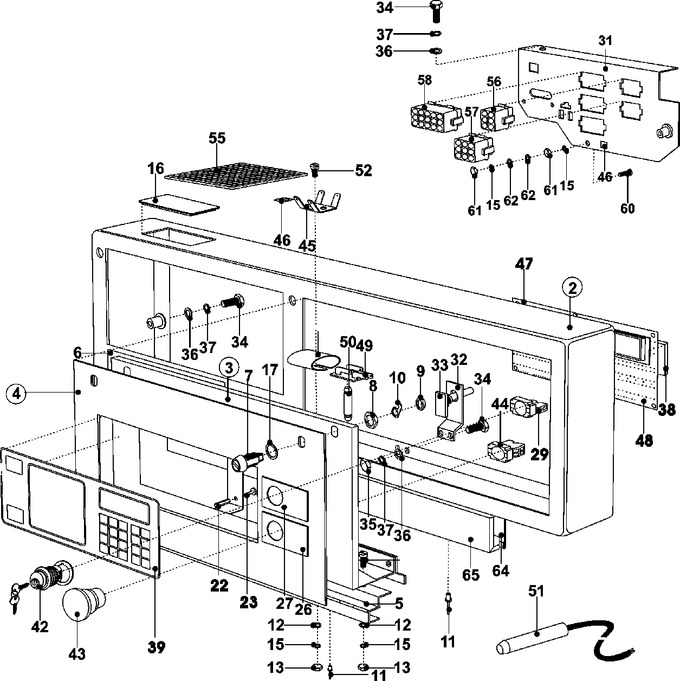

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 002 | 23002763 | Panel, Front | 10 |
|
- | ||||
| 003 | 23003960 | Top Cover, Complete | 10 |
|
- | ||||
| 004 | 23003961 | Sticker, Complete | 10 |
|
- | ||||
| 005 | 23002766 | Support, Plate | 10 |
|
- | ||||
| 006 | 23003962 | Plate, Index | 10 |
|
- | ||||
| 007 | 23001583 | Device, Locking | 10 |
|
- | ||||
| 008 | 23001008 | Lock Nut (large) | 10 |
|
$ 186.62 | ||||
| 009 | 23001011 | Nut | 10 |
|
- | ||||
| 010 | 23002451 | Pawl | 10 |
|
- | ||||
| 011 | 23002408 | Rivet W/crank | 10 |
|
- | ||||
| 012 | 23002438 | Washer (m6) | 10 |
|
- | ||||
| 013 | 23003666 | Nut (m4) | 10 |
|
- | ||||
| 014 | 23002423 | Screw (m4 X 10) | 10 |
|
- | ||||
| 015 | 23002400 | Washer | 10 |
|
- | ||||
| 016 | NLA | Cover | 10 |
|
- | ||||
| 017 | 23001007 | Washer, Fiber | 10 |
|
- | ||||
| 022 | 23003873 | Sleeve | 10 |
|
- | ||||
| 023 | 23003872 | Screw, Thumb | 10 |
|
- | ||||
| 026 | 23003870 | Label, Stop | 10 |
|
- | ||||
| 027 | 23003869 | Label, Run | 10 |
|
- | ||||
| 029 | 23001076 | Contract Block (no) | 10 |
|
- | ||||
| 031 | 23003963 | Board, Complete | 10 |
|
- | ||||
| 032 | 23002774 | Holder, Vibration Switch | 10 |
|
- | ||||
| 033 | 23002775 | Switch, Vibration | 10 |
|
- | ||||
| 034 | NLA | Screw (m6x10) | 10 |
|
- | ||||
| 035 | 23003773 | Nut M6 | 10 |
|
- | ||||
| 036 | 23003774 | Washer 12 | 10 |
|
- | ||||
| 037 | 20007283 | Washer, Spring Lock (6) (Replaces: 23002440) | 10 |
|
$ 504.91 | ||||
| 038 | W10675663 | Microprocessor Chip(mcb40) (Replaces: 23003822) | 10 |
|
- | ||||
| 039 | 23003821 | Keyboard | 10 |
|
- | ||||
| 039 | WP23003890 | Keyboard Full Control (Replaces: 23003890) | 10 |
|
$ 512.93 | ||||
| 042 | 23001082 | Block, Programming Key | 10 |
|
- | ||||
| 043 | 23002331 | Emergency Stop (Replaces: 23001078) | 10 |
|
- | ||||
| 044 | 23002331 | Emergency Bloc (w/lamp) (Replaces: 23001075) | 10 |
|
- | ||||
| 045 | NLA | Contact (6.3 Type 140609-0) | 10 |
|
- | ||||
| 046 | 23002505 | Plate, Earth | 10 |
|
- | ||||
| 047 | W10813130 | Power Board (Replaces: 23003819) | 10 |
|
- | ||||
| 048 | W10813130 | Microprocessor Control(mcb40lu (Replaces: 23003820) | 10 |
|
- | ||||
| 049 | 23001094 | Bridge, Rectifier | 10 |
|
- | ||||
| 050 | 23001099 | Pc Board Socket | 10 |
|
- | ||||
| 051 | 23003964 | Sensor, Temperature | 10 |
|
- | ||||
| 052 | 23001609 | Screw (m4x12) | 10 |
|
- | ||||
| 055 | 23003874 | Index Plates | 10 |
|
- | ||||
| 056 | 23001723 | Board, Terminal (amp 6 Poles) | 10 |
|
- | ||||
| 057 | 23001722 | Board, Terminal (amp 9 Poles) | 10 |
|
- | ||||
| 058 | 23001721 | Board, Terminal (amp 15 Poles) | 10 |
|
- | ||||
| 060 | 23002778 | Screw (m4 X 12) | 10 |
|
- | ||||
| 061 | 23002976 | Nut (m4) | 10 |
|
- | ||||
| 062 | 23002976 | Nut (m4) | 10 |
|
- | ||||
| 064 | NLA | Pilot Valve-l | 10 |
|
- | ||||
| 065 | 23003966 | Cover, Top Front | 10 |
|
- | ||||
| 066 | 23003967 | Tube, Insulation | 10 |
|
- |
