Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 23003228 Door (complete) 10 Appelez-nous -
002 23002675 Door 10 Special Order $ 1,193.88

003 23002676 Hinge, Door 10 Special Order $ 1,792.62

004 23003945 Handle 10 Appelez-nous -
005 23002678 Bracket 10 Appelez-nous -
006 23002679 Lever, Door 10 Appelez-nous -
007 23002680 Tyre 10 Appelez-nous -
009 23002681 Insertion Piece 10 Appelez-nous -
010 23002682 Washer 10 Appelez-nous -
011 23002683 Plate 10 Appelez-nous -
012 23002684 Z-bracket 10 Appelez-nous -
013 23002685 Nut, Displacing 10 Appelez-nous -
014 23002686 Washer, Wearing 10 Appelez-nous -
015 NLA Spacer 10 Appelez-nous -
016 23003946 Seal, Glass 10 Appelez-nous -
017 23003947 Seal, Door 10 Special Order $ 92.13

018 23002690 Glass 10 Appelez-nous -
019 23002265 Washer 10 Appelez-nous -
020 23001468 Sticker, Spin Direction 10 Special Order $ 870.39

021 23004114 Screw (m6x18)   (Replaces: 23001618) 10 Appelez-nous -
022 23001658 Screw (m6x10) 10 Special Order $ 18.77

023 23002280 Nut M6 10 Appelez-nous -
024 NLA Nut (m6) 10 Appelez-nous -
025 23002424 Washer 10 Appelez-nous -
026 23002130 Washer (6) 10 Appelez-nous -
027 23002691 Pin 10 Appelez-nous -
028 23002692 Sleeve 10 Appelez-nous -
029 23003948 Retaining Ring 10 Appelez-nous -
033 23002694 Board, Console 10 Appelez-nous -
034 23002695 Support, Console 10 Appelez-nous -
035 23002696 Sleeve 10 Appelez-nous -
036 23002697 Screw (m12 X 30) 10 Appelez-nous -
037 23002698 Screw, Door Console 10 Appelez-nous -
038 NLA Washer, Door Console 10 Appelez-nous -
039 23003950 Index Plate, Heat Warn 10 Appelez-nous -
040 23001668 Contact, Magnetic 10 Appelez-nous -
041 NLA Holder, Magnet 10 Appelez-nous -
043 23002721 Screw (m4x12) 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

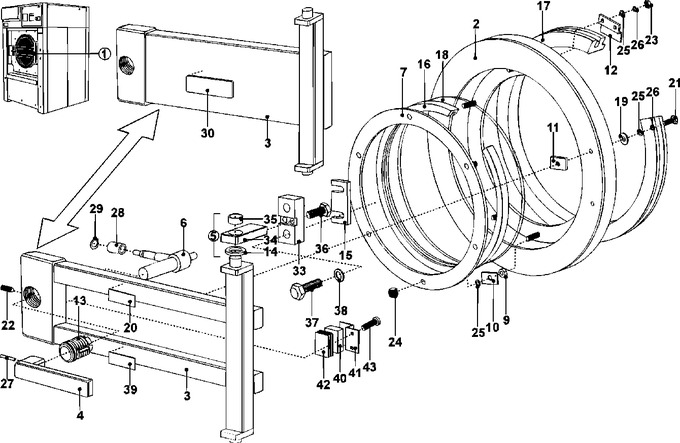

Diagram for MFS80PNDVS
