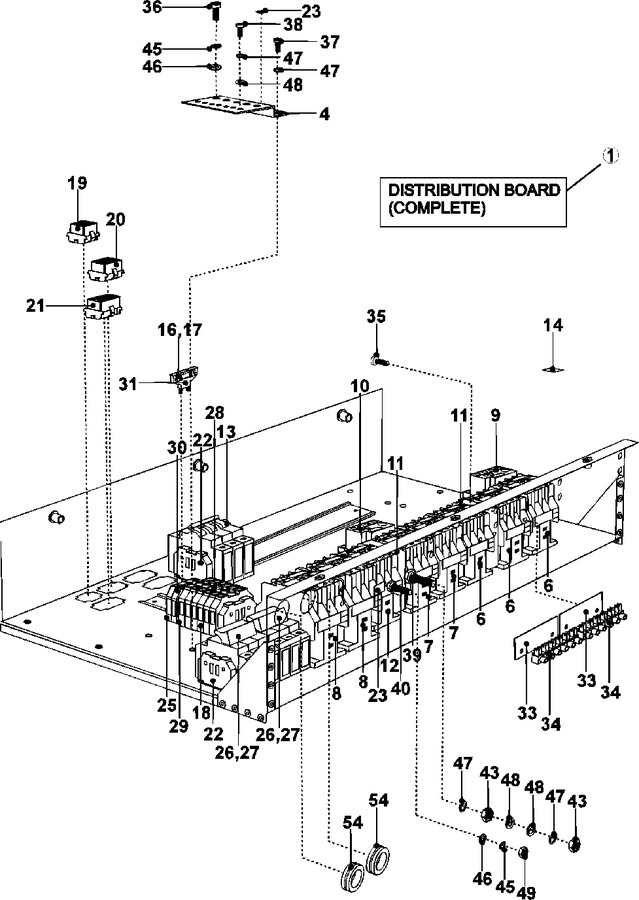

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003235		Board, Distribution (complete)	10	Appelez-nous	-
004	23002099		Cube, Earth	10	Appelez-nous	-
006	23001101		Contactor (lc1-d1201 M7)	10	Appelez-nous	-
006	23002796		Contactor (lc1-d1810 M7)	10	Appelez-nous	-
007	23001102		Contactor (lc1-d1801 M7)	10		Immediately	$ 2,343.16
008	23001103		Contactor (lc1-d3201 M7)	10	Appelez-nous	-
009	23001108		Relay, Thermal Overload (7-10a	10	Appelez-nous	-
010	23002105		Relay, Overload (lr2d1322)	10	Appelez-nous	-
011	23001119		Mechanical Interlock, Contacto	10	Appelez-nous	-
013	23001119		Mechanical Interlock, Contacto	10	Appelez-nous	-
014	23003236		Plate, Index	10	Appelez-nous	-
016	WP23001508		Fuse (1a)   (Replaces: 23002918)	10			$ 48.21
017	WP22001555		Fuse 1a 6x32   (Replaces: 23003385)	10		Immediately	$ 27.33
018	23002797		Clamp	10	Appelez-nous	-
019	23001722		Board, Terminal (amp 9 Poles)	10	Appelez-nous	-
020	23002798		Board,terminal (12 Pole)	10	Appelez-nous	-
021	23001721		Board, Terminal (amp 15 Poles)	10	Appelez-nous	-
022	23002799		Stop End	10	Appelez-nous	-
023	23002505		Plate, Earth	10	Appelez-nous	-
025	23002803		Bridge (19.116.217-02)	10	Appelez-nous	-
025	NLA		Cover (vast4-4)	10	Appelez-nous	-
026	23003158		Fuse, Disconnecter	10	Appelez-nous	-
027	23002802		Disconnector, Fuse (pv10gg32a)	10	Appelez-nous	-
028	23002803		Bridge (19.116.217-02)	10	Appelez-nous	-
029	23003238		Cover	10	Appelez-nous	-
030	23003239		Clamp, Fuse Plug	10	Appelez-nous	-
031	23003240		Plug, Fuse	10	Appelez-nous	-
033	23003970		Label, Terminal Board	10	Appelez-nous	-
034	23002154		Board, Terminal (6 Poles)	10	Appelez-nous	-
035	23001609		Screw (m4x12)	10	Appelez-nous	-
036	NLA		Screw (m4x10)	10	Appelez-nous	-
037	23002805		Screw (m4x16)	10	Appelez-nous	-
038	23001733		Screw (m6x10)	10	Appelez-nous	-
039	23002806		Screw (m6 X 25)	10	Appelez-nous	-
040	NLA		Screw (m4x20)	10	Appelez-nous	-
042	NLA		Screw (st4.2 X 13)	10	Appelez-nous	-
043	23002651		Nut (m6)	10	Appelez-nous	-
045	23002400		Washer	10	Appelez-nous	-
046	23002725		Washer (3)	10	Appelez-nous	-
047	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
048	WP311093		Washer (6)   (Replaces: 23002726)	10			$ 7.25
049	23003666		Nut (m4)	10	Appelez-nous	-
054	NLA		Passage, Cable (22x2)	10	Appelez-nous	-
