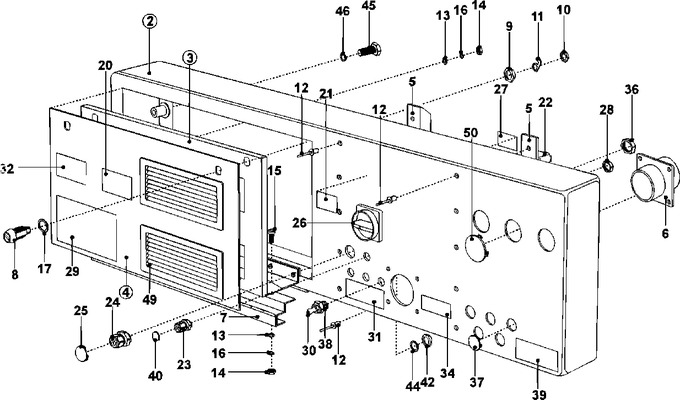

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 002 | 23002783 | Panel, Rear | 10 |
|
- | ||||
| 003 | 23002784 | Cover, Rear Panel | 10 |
|
- | ||||
| 004 | 23002785 | Plate, Panel Cover | 10 |
|
- | ||||
| 005 | 23002786 | Frame, Pumps | 10 |
|
- | ||||
| 006 | 23002787 | Vent, Rear Panel | 10 |
|
- | ||||
| 007 | 23002766 | Support, Plate | 10 |
|
- | ||||
| 008 | 23001583 | Device, Locking | 10 |
|
- | ||||
| 009 | 23001008 | Lock Nut (large) | 10 |
|
$ 186.62 | ||||
| 010 | 23001011 | Nut | 10 |
|
- | ||||
| 011 | 23002451 | Pawl | 10 |
|
- | ||||
| 012 | NLA | Rivet/crank (4 X 7.5) | 10 |
|
- | ||||
| 013 | 23002438 | Washer (m6) | 10 |
|
- | ||||
| 014 | 23003666 | Nut (m4) | 10 |
|
- | ||||
| 015 | 23002423 | Screw (m4 X 10) | 10 |
|
- | ||||
| 016 | 23002400 | Washer | 10 |
|
- | ||||
| 017 | 23001007 | Washer, Fiber | 10 |
|
- | ||||
| 020 | 23003390 | Index Plate ``flash`` | 10 |
|
- | ||||
| 021 | NLA | Label (warning) | 10 |
|
- | ||||
| 022 | 23003502 | Switch, Main (63a) | 10 |
|
- | ||||
| 023 | 23002196 | Swivel, Cable | 10 |
|
- | ||||
| 024 | NLA | Swivel, Cable | 10 |
|
- | ||||
| 025 | NLA | Blind, Universal | 10 |
|
- | ||||
| 026 | 23003497 | Knob | 10 |
|
- | ||||
| 027 | NLA | Label, Warning El. Tension | 10 |
|
- | ||||
| 028 | 23002197 | Nut | 10 |
|
- | ||||
| 029 | 23001550 | Label, Earth | 10 |
|
- | ||||
| 030 | 23002788 | Head, Greasing | 10 |
|
- | ||||
| 031 | 23002793 | Plate (greasing) | 10 |
|
- | ||||
| 032 | 23001465 | Sticker, Electricity Warning | 10 |
|
- | ||||
| 034 | 23002053 | Label, Warning Vent Out | 10 |
|
- | ||||
| 036 | NLA | Nut | 10 |
|
- | ||||
| 037 | NLA | Plug (13) | 10 |
|
- | ||||
| 038 | NLA | Sleeve, Reducing | 10 |
|
- | ||||
| 039 | 23003971 | Label, Liquid Soap | 10 |
|
- | ||||
| 040 | 23002243 | Plug, Universal | 10 |
|
- |
