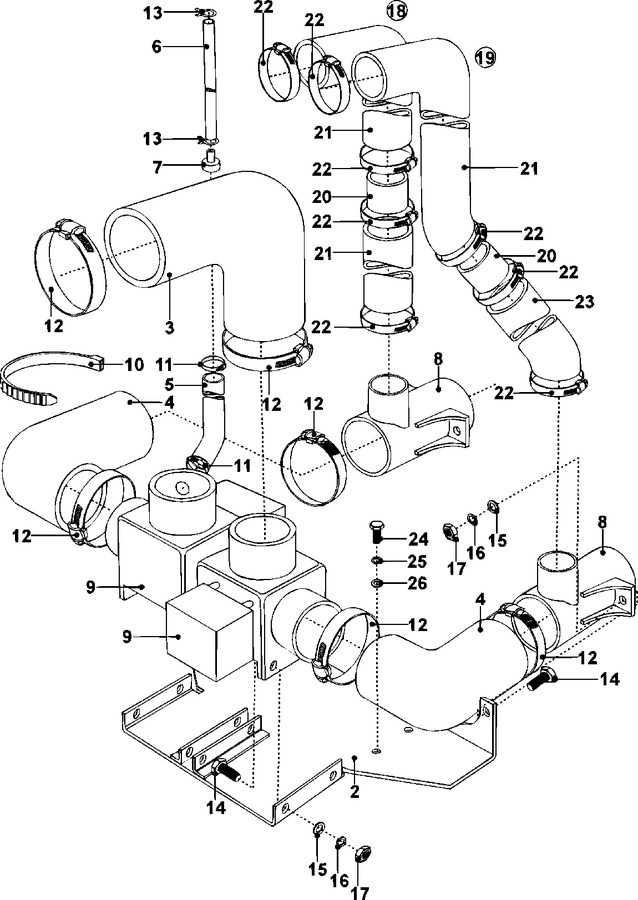

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23003243		Board, Drain (complete)	10	Appelez-nous	-
003	23003244		Elbow, 90 Degree	10	Appelez-nous	-
004	23003245		Elbow, 90 Degree	10	Appelez-nous	-
005	23003035		Elbow   (Replaces: 23001762)	10	Appelez-nous	-
006	23001252		Hose, Water Level Switch	10	Appelez-nous	-
007	23001260		Bushing, Air Dome Hose	10	Appelez-nous	-
008	23001253		Drain Tee	10	Appelez-nous	-
009	23001244		Valve, Drain (240v-50/60hz)	10			$ 2,768.25
010	23001720		Binder, Cable	10	Appelez-nous	-
011	WP616099		Clamp, Hose (20-32)   (Replaces: 23001262)	10		Immediately	$ 7.03
012	WP696392		Clamp, Hose (70-90)   (Replaces: 23001258)	10			$ 7.31
013	WP596669		Clamp, Corbin (a5.5)   (Replaces: 23001257)	10		Immediately	$ 7.56
014	23002475		Bolt (m8x20)	10			$ 13.66
015	23003769		Washer M8	10	Appelez-nous	-
016	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
017	NLA		Nut M8	10	Appelez-nous	-
018	23002824		Hose, Direct	10	Appelez-nous	-
019	23003246		Hose, Bended	10	Appelez-nous	-
020	23002826		Pipe (40)	10	Appelez-nous	-
021	23001760		Hose, Overflow	10	Appelez-nous	-
022	23001750		Ring, Clamp (40-60)	10	Appelez-nous	-
023	23001251		Hose, Overflow	10	Appelez-nous	-
024	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
025	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
026	23003774		Washer 12	10	Appelez-nous	-
