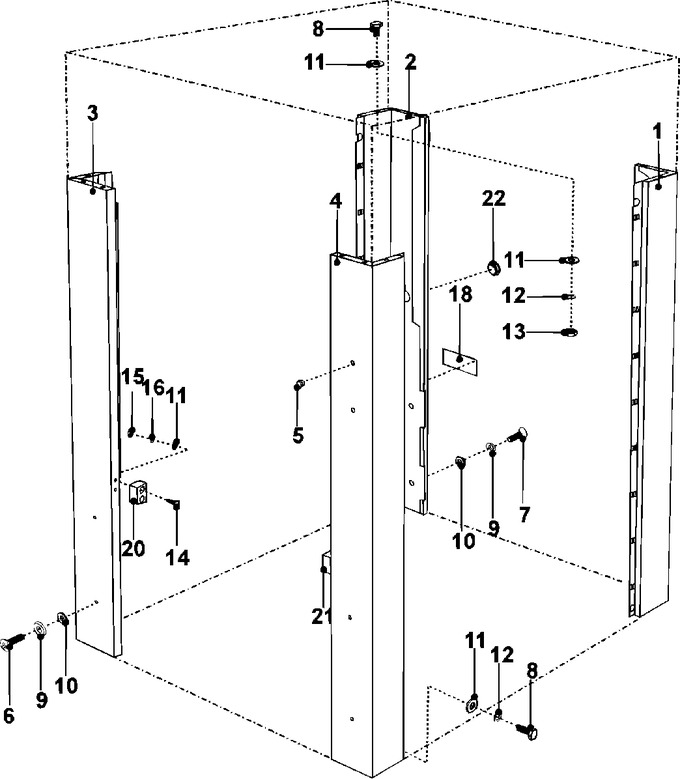

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002369		Cover, Right-rear	10	Appelez-nous	-
002	23002370		Cover, Left-rear	10	Appelez-nous	-
003	23003918		Cvr, Front Lh Corner	10	Appelez-nous	-
004	23003919		Cvr, Front Rh Corner	10	Appelez-nous	-
005	23002373		End Stop	10	Appelez-nous	-
006	23002374		Screw (m6x20)	10	Appelez-nous	-
007	23002375		Screw (m6x40)	10	Appelez-nous	-
008	NLA		Screw (m6x18)	10	Appelez-nous	-
009	23002457		Washer	10	Appelez-nous	-
010	23002458		Washer (fiber)	10	Appelez-nous	-
011	23003774		Washer 12	10	Appelez-nous	-
012	23002138		Washer (10)	10	Appelez-nous	-
013	23002651		Nut (m6)	10	Appelez-nous	-
014	23003920		Bolt M6x40	10	Appelez-nous	-
015	23002470		Washer	10	Appelez-nous	-
016	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
018	23003921		Label, Steam	10	Appelez-nous	-
020	23003922		Cube, Left	10	Appelez-nous	-
021	23003923		Cube, Right	10	Appelez-nous	-
022	23001594		Blind, Heating Element	10	Appelez-nous	-
