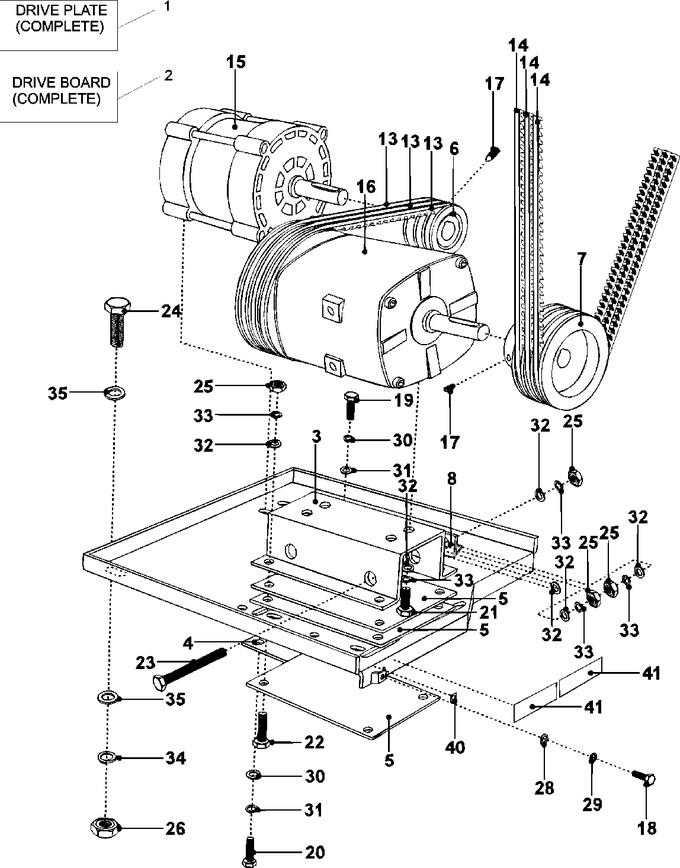

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003216		Plate, Drive (complete)	10	Appelez-nous	-
002	23003943		Drive Board, Complete	10	Appelez-nous	-
003	23003218		Holder, Motor	10	Appelez-nous	-
004	NLA		Washer, Motor	10	Appelez-nous	-
005	NLA		Washer, Motor (spin)	10	Appelez-nous	-
006	23003221		Pulley, Wash Motor	10	Appelez-nous	-
007	23003222		Pulley, Spin Motor	10	Appelez-nous	-
008	NLA		Bracket	10	Appelez-nous	-
013	23002122		V-belt (xpz987)	10			$ 110.85
014	23001657		V-belt (2287mm)	10			$ 51.56
015	23003084		Motor, Wash (208-240v, 60hz)	10	Appelez-nous	-
016	23003085		Motor, Spin (208-240v, 60hz)lu	10	Appelez-nous	-
017	23001658		Screw (m6x10)	10			$ 18.77
018	23002422		Screw (m6 X 12)	10	Appelez-nous	-
019	23002475		Bolt (m8x20)	10			$ 13.66
020	23002434		Screw (m8x30)	10	Appelez-nous	-
021	23002648		Screw (m10x20)	10	Appelez-nous	-
022	23002987		Screw (m10x30)	10	Appelez-nous	-
023	23001660		Screw (m10x120)	10	Appelez-nous	-
024	23002661		Screw (m12x35)	10	Appelez-nous	-
025	NLA		Nut M8	10	Appelez-nous	-
026	NLA		Nut (m12)	10	Appelez-nous	-
028	23002424		Washer	10	Appelez-nous	-
029	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
030	23003769		Washer M8	10	Appelez-nous	-
031	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
032	23003788		Washer	10	Appelez-nous	-
033	23002654		Washer (10)	10	Appelez-nous	-
034	23002658		Washer (12)	10	Appelez-nous	-
035	23001292		Washer (13)	10	Appelez-nous	-
040	23002505		Plate, Earth	10	Appelez-nous	-
041	23003944		Label, Motor	10	Appelez-nous	-
