SELECT A DIAGRAM

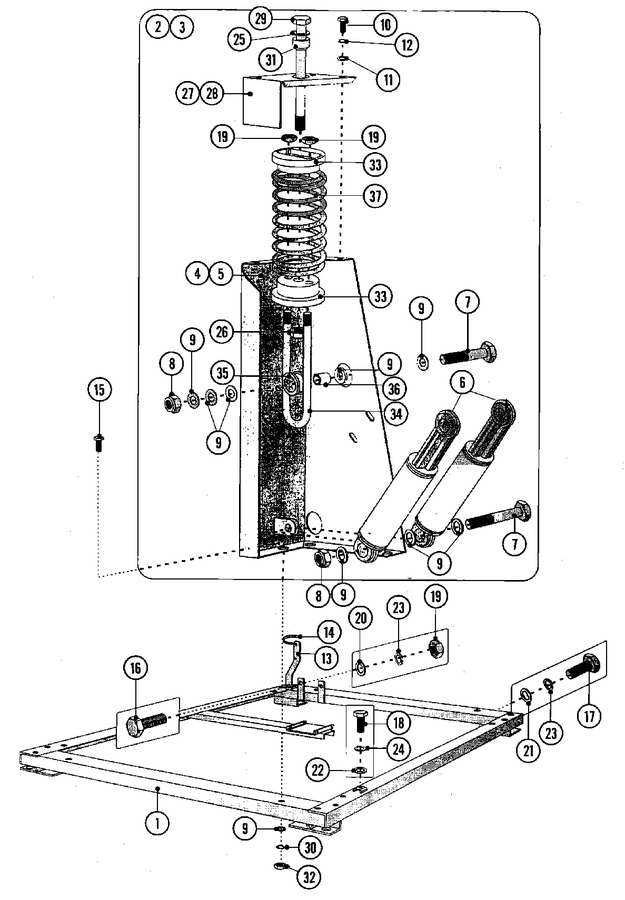

01 - Base


02 - Cabinet


03 - Basket & Outer Shell Assembly


04 - Inner Tub


05 - Front Counter Weight


06 - Bearings & Trunnion Assembly


07 - Motor & Basket Pulley


08 - Door


09 - Door Lock Assembly


10 - Soap Box


11 - Top Cover


12 - Control Panel


13 - Electrical Components


14 - Soap Injection & Accessories


15 - Steam Supply


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002978		Frame, Foundation	10	Appelez-nous	-
002	23002979		Leg (complete)	10	Appelez-nous	-
003	23002980		Leg (complete)	10	Appelez-nous	-
004	23002981		Leg	10	Appelez-nous	-
005	23002982		Leg	10	Appelez-nous	-
006	23002983		Damper (rd 12-2)	10			$ 392.15
007	23002984		Screw (m10x80)	10	Appelez-nous	-
008	23002356		Nut M10	10	Appelez-nous	-
009	23002655		Washer (10.5)	10	Appelez-nous	-
010	23004114		Screw (m6x16)   (Replaces: 23002354)	10	Appelez-nous	-
011	23002282		Washer (6)	10	Appelez-nous	-
012	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
013	23002985		Holder	10	Appelez-nous	-
014	23002986		Strip, Binding	10	Appelez-nous	-
015	23002987		Screw (m10x30)	10	Appelez-nous	-
016	23002475		Bolt (m8x20)	10			$ 13.66
017	23001784		Bolt (m8x14)	10	Appelez-nous	-
018	23001733		Screw (m6x10)	10	Appelez-nous	-
019	23002435		Nut (m8)	10	Appelez-nous	-
020	23002653		Washer (8/6)	10	Appelez-nous	-
021	NLA		Washer (8.4)	10	Appelez-nous	-
022	WP311093		Washer (6)   (Replaces: 23002726)	10			$ 7.25
023	23002358		Washer M8	10	Appelez-nous	-
024	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
025	23002988		Washer (10.5)	10	Appelez-nous	-
026	23002356		Nut M10	10	Appelez-nous	-
027	23002989		Plate, Small	10	Appelez-nous	-
028	23002990		Plate, Small	10	Appelez-nous	-
029	23002991		Screw	10			$ 225.63
030	23002654		Washer (10)	10	Appelez-nous	-
031	23002992		Bushing, Suspension Bolt	10	Appelez-nous	-
032	DC60-50145A		Nut M10   (Replaces: 23001661)	10			$ 2.39
033	23002993		Holder, Spring (plastic)	10	Appelez-nous	-
034	23002994		Hook, Suspension	10	Appelez-nous	-
035	23002692		Sleeve	10	Appelez-nous	-
036	23002995		Piece, Insertion	10	Appelez-nous	-
037	23002996		Spring	10			$ 38.45
