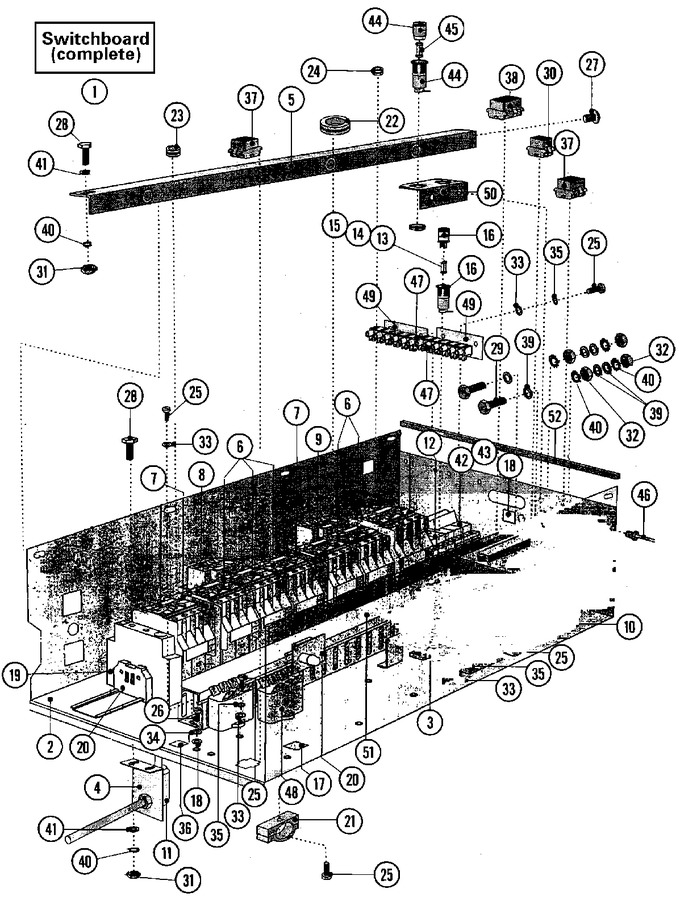

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003150 | Switchboard | 10 |
|
- | ||||
| 002 | 23003151 | Board, Switchboard(complete)lu | 10 |
|
- | ||||
| 003 | NLA | Holder, Fuse | 10 |
|
- | ||||
| 004 | NLA | Holder, Vibration Switch | 10 |
|
- | ||||
| 005 | NLA | Holder (complete) | 10 |
|
- | ||||
| 006 | 23001101 | Contactor (lc1-d1201 M7) | 10 |
|
- | ||||
| 007 | 23001119 | Mechanical Interlock, Contacto | 10 |
|
- | ||||
| 008 | 23001106 | Relay, Thermal Overload (4-6a) | 10 |
|
- | ||||
| 009 | 23001105 | Relay, Thermal Overload (9-13a | 10 |
|
- | ||||
| 010 | 23002142 | Transformer | 10 |
|
- | ||||
| 010 | 23003704 | Transformer (250 Va) | 17 |
|
- | ||||
| 011 | 23002775 | Switch, Vibration | 10 |
|
- | ||||
| 012 | 23001094 | Bridge, Rectifier | 10 |
|
- | ||||
| 012 | 23001717 | Breaker, Circuit | 10 |
|
- | ||||
| 012 | NLA | Parts, Contact | 10 |
|
- | ||||
| 013 | 23002838 | Fuse (1.6a) | 10 |
|
- | ||||
| 014 | 23001463 | Fuse (2a) | 10 |
|
- | ||||
| 015 | 23002043 | Fuse (4a) | 10 |
|
- | ||||
| 016 | 23001462 | Holder, Fuse | 10 |
|
- | ||||
| 017 | NLA | Labels, Description | 10 |
|
- | ||||
| 018 | NLA | Label, Earth | 10 |
|
- | ||||
| 019 | 23003155 | Parts, Contactor | 10 |
|
- | ||||
| 020 | 23002110 | Terminal Wago | 10 |
|
$ 242.60 | ||||
| 021 | 23002428 | Clip, Cable | 10 |
|
- | ||||
| 022 | 23001117 | Ring, Rubber (dia. 25) | 10 |
|
- | ||||
| 023 | NLA | Passage, Cable (13 X 2) | 10 |
|
- | ||||
| 024 | NLA | Bushing, Rubber | 10 |
|
- | ||||
| 025 | 23001609 | Screw (m4x12) | 10 |
|
- | ||||
| 026 | 23002650 | Screw (m6x12) | 10 |
|
- | ||||
| 027 | NLA | Screw (m6x10) | 10 |
|
- | ||||
| 028 | 23002649 | Screw (m6x10) | 10 |
|
- | ||||
| 029 | 23002806 | Screw (m6 X 25) | 10 |
|
- | ||||
| 030 | 23002154 | Board, Terminal (6 Poles) | 10 |
|
- | ||||
| 031 | 23002651 | Nut (m6) | 10 |
|
- | ||||
| 032 | 23001515 | Nut (m6) | 10 |
|
- | ||||
| 033 | 23001610 | Washer (4.3) | 10 |
|
- | ||||
| 034 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 035 | 23002400 | Washer | 10 |
|
- | ||||
| 036 | 23002656 | Washer (4.3) | 10 |
|
- | ||||
| 037 | 23001722 | Board, Terminal (amp 9 Poles) | 10 |
|
- | ||||
| 038 | 23002798 | Board,terminal (12 Pole) | 10 |
|
- | ||||
| 039 | WP311093 | Washer (6) (Replaces: 23002726) | 10 |
|
$ 7.25 | ||||
| 040 | 20007283 | Washer (Replaces: 23002357) | 10 |
|
$ 504.91 | ||||
| 041 | 23002282 | Washer (6) | 10 |
|
- | ||||
| 042 | 23003158 | Fuse, Disconnecter | 10 |
|
- | ||||
| 043 | 23002802 | Disconnector, Fuse (pv10gg32a) | 10 |
|
- | ||||
| 044 | 23002210 | Holder, Fuse | 10 |
|
- | ||||
| 045 | 23003159 | Fuse (5a) | 10 |
|
- | ||||
| 046 | NLA | Rivet | 10 |
|
- | ||||
| 047 | 23002154 | Board, Terminal (6 Poles) | 10 |
|
- | ||||
| 048 | 23001518 | Series 15 - No Longer Needed |
|
- | |||||
| 048 | NLA | Net Filter | 10 |
|
- | ||||
| 049 | 23001115 | Insulation Paper | 10 |
|
- | ||||
| 050 | NLA | Holder, Fuses | 10 |
|
- | ||||
| 051 | 23001551 | Gutter, Cable (plastic) | 10 |
|
- | ||||
| 052 | 23001088 | Rubber Trim | 10 |
|
- |
