SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Basket & Outer Shell Assembly


04 - Inner Tub


05 - Front Counter Weight


06 - Bearings & Trunnion Assembly


07 - Motor & Basket Pulley


08 - Door

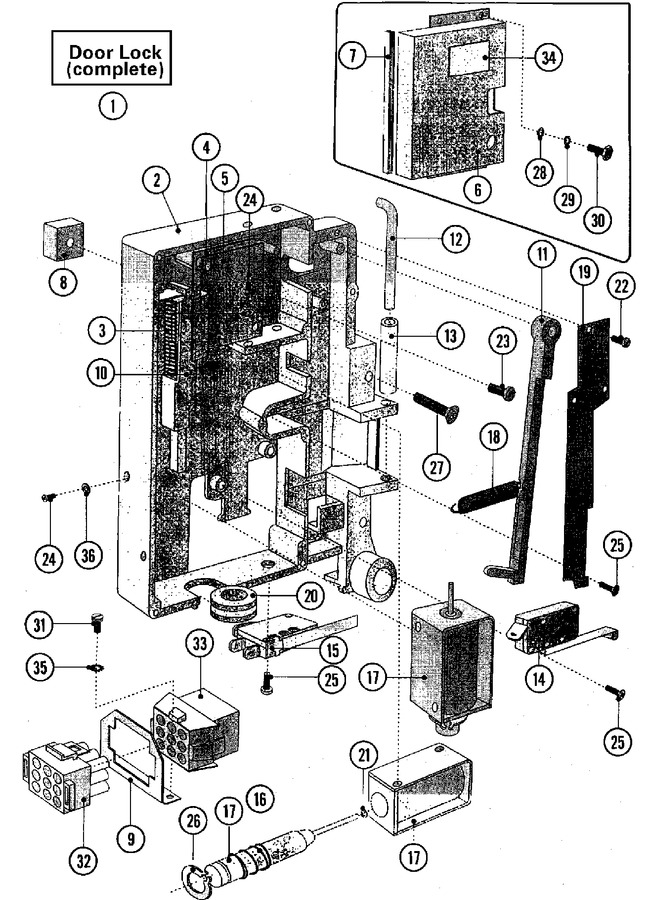

09 - Door Lock Assembly


10 - Soap Box


11 - Top Cover


12 - Control Panel


13 - Electrical Components


14 - Soap Injection & Accessories


15 - Steam Supply


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003105		Doorlock	10	Appelez-nous	-
002	Y23002898		Ground, Plate Lock	10	Appelez-nous	-
003	23003106		Spring, Doorlock	10	Appelez-nous	-
004	23003107		Plate, Decoupling	10	Appelez-nous	-
005	23003108		Plate, Decoupling	10	Appelez-nous	-
006	23003109		Cover, Locking Device	10	Appelez-nous	-
007	23001088		Rubber Trim	10	Appelez-nous	-
008	23003110		Washer	10	Appelez-nous	-
009	23003111		Holder, Connector	10	Appelez-nous	-
010	23001140		Bar, Locking	10	Appelez-nous	-
011	23002899		Handle, Locking Part	10	Appelez-nous	-
012	23001142		Retainer, Lock Tube (dia.4x45)	10	Appelez-nous	-
013	23001143		Lock Tube (dia. 4x23.5 Stnls)	10	Appelez-nous	-
014	23003112		Microswitch	10	Appelez-nous	-
015	23001145		Microswitch, Long Lever	10	Appelez-nous	-
016	23002903		Spring, Locking Part	10	Appelez-nous	-
017	23001146		Coil (240v)	10	Appelez-nous	-
018	23002900		Spring, Locking Part	10	Appelez-nous	-
019	23001149		Leaf Spring, Latch Bar	10	Appelez-nous	-
020	23001138		Bushing, Cable Passage	10	Appelez-nous	-
021	23001136		Washer (dia. 5.1 X 3.3 X 0.1)	10	Appelez-nous	-
022	23003113		Screw (m3x6)	10	Appelez-nous	-
023	23003114		Screw (m4x8) Lu	10	Appelez-nous	-
024	23002869		Screw (m3x6)	10	Appelez-nous	-
025	23003115		Screw (m3x14)	10	Appelez-nous	-
026	23001137		Ring, Retaining (g10)	10	Appelez-nous	-
027	23003116		Screw (m5x30)	10	Appelez-nous	-
028	23001643		Washer (m6)	10	Appelez-nous	-
029	23002130		Washer (6)	10	Appelez-nous	-
030	23002353		Screw (m6x12)	10	Appelez-nous	-
031	23001704		Screw (m5x10)	10	Appelez-nous	-
032	23003117		Board, Terminal (9-pole)	10	Appelez-nous	-
033	23001722		Board, Terminal (amp 9 Poles)	10	Appelez-nous	-
034	NLA		Label (warning)	10	Appelez-nous	-
035	23004485		Washer, Lock   (Replaces: 23002465)	10	Appelez-nous	-
