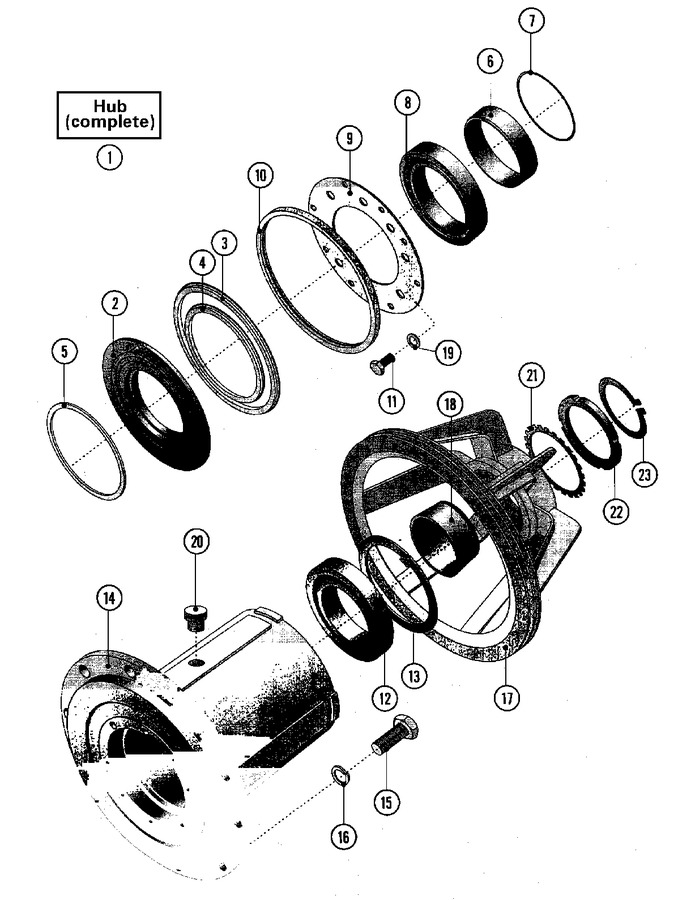

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003066		Hub (complete) Lu	10	Appelez-nous	-
002	23003067		Disk	10	Appelez-nous	-
003	23003068		Sealing	10	Appelez-nous	-
004	23003069		Sealing	10	Appelez-nous	-
005	23003070		O-ring	10	Appelez-nous	-
006	23003071		Ring	10	Appelez-nous	-
007	23003072		Ring	10	Appelez-nous	-
008	23003073		Bearing	10	Appelez-nous	-
009	23003074		Board, Packing	10	Appelez-nous	-
010	23003075		U-sealing	10	Appelez-nous	-
011	23002353		Screw (m6x12)	10	Appelez-nous	-
012	23003076		Bearing	10	Appelez-nous	-
013	23003077		Ring, Retaining	10	Appelez-nous	-
014	23003078		Hub	10	Appelez-nous	-
015	23003079		Screw (m12x40)	10	Appelez-nous	-
016	23002658		Washer (12)	10	Appelez-nous	-
017	23003080		Pulley, Belt	10	Appelez-nous	-
018	23001653		Bushing	10	Appelez-nous	-
019	23002281		Washer (6-copper)	10	Appelez-nous	-
020	23003081		Stopper	10	Appelez-nous	-
021	23001868		Ring, Safety	10	Appelez-nous	-
022	23001867		Ring, Fastening	10	Appelez-nous	-
023	23003082		Ring, Retaining	10	Appelez-nous	-
