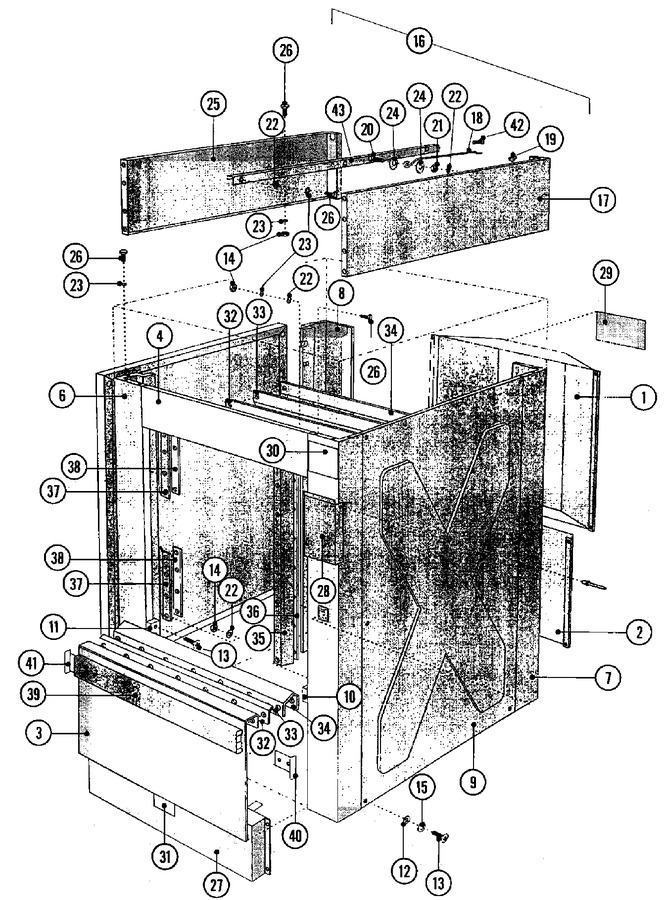

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002997		Cover, Upper (rear)	10	Appelez-nous	-
002	23002998		Cover, Rear (lower)	10	Appelez-nous	-
002	23002999		Cover, Rear (lower-steam)	10	Appelez-nous	-
003	23003000		Cover, Front (lower)	10	Appelez-nous	-
004	23003001		Cover, Front (upper)	10	Appelez-nous	-
005	23003002		Cover, Corner (front-right)	10	Appelez-nous	-
006	23003003		Cover, Corner (front-left)	10	Appelez-nous	-
007	23003004		Cover, Corner (rear-left)	10	Appelez-nous	-
008	23003005		Cover, Corner (rear-right)	10	Appelez-nous	-
009	23003006		Cover, Side	10	Appelez-nous	-
010	23003007		Support, Plastic (left)	10	Appelez-nous	-
011	23003008		Support, Plastic (right)	10	Appelez-nous	-
012	23002458		Washer (fiber)	10	Appelez-nous	-
013	23002375		Screw (m6x40)	10	Appelez-nous	-
014	23002436		Nut (m6)	10	Appelez-nous	-
015	23001337		Washer, Finishing	10	Appelez-nous	-
016	23003010		Cover (complete)	10	Appelez-nous	-
017	23003011		Cover	10	Appelez-nous	-
018	23001330		Support Rod, Top Panel	10	Appelez-nous	-
019	NLA		Hook, Stick	10	Appelez-nous	-
020	23002463		Screw (m6 X 30)	10	Appelez-nous	-
021	23002471		Nut	10	Appelez-nous	-
022	23002282		Washer (6)	10	Appelez-nous	-
023	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
024	23003012		Washer Lu	10	Appelez-nous	-
025	NLA		Cover	10	Appelez-nous	-
026	23004114		Screw (m6x16)   (Replaces: 23002354)	10	Appelez-nous	-
027	NLA		Cover, Heating Unit	10	Appelez-nous	-
028	NLA		Pocket	10	Appelez-nous	-
029	23001550		Label, Earth	10	Appelez-nous	-
030	23002190		Label, English	10			$ 270.59
030	NLA		Label, Notice	10	Appelez-nous	-
031	NLA		Label, Flash	10	Appelez-nous	-
032	NLA		Bar	10	Appelez-nous	-
033	NLA		Strip, Preventing	10	Appelez-nous	-
034	NLA		Strip	10	Appelez-nous	-
035	NLA		Strip, Preventing	10	Appelez-nous	-
036	23003028		Strip	10	Appelez-nous	-
037	NLA		Strip, Preventing	10	Appelez-nous	-
038	NLA		Strip	10	Appelez-nous	-
039	23002411		Profile	10	Appelez-nous	-
040	23002410		Bar, Side	10	Appelez-nous	-
041	23002409		Bar, Inside	10	Appelez-nous	-
042	23002861		Screw (m6x25) Lu	10	Appelez-nous	-
043	NLA		Holder (complete)	10	Appelez-nous	-
