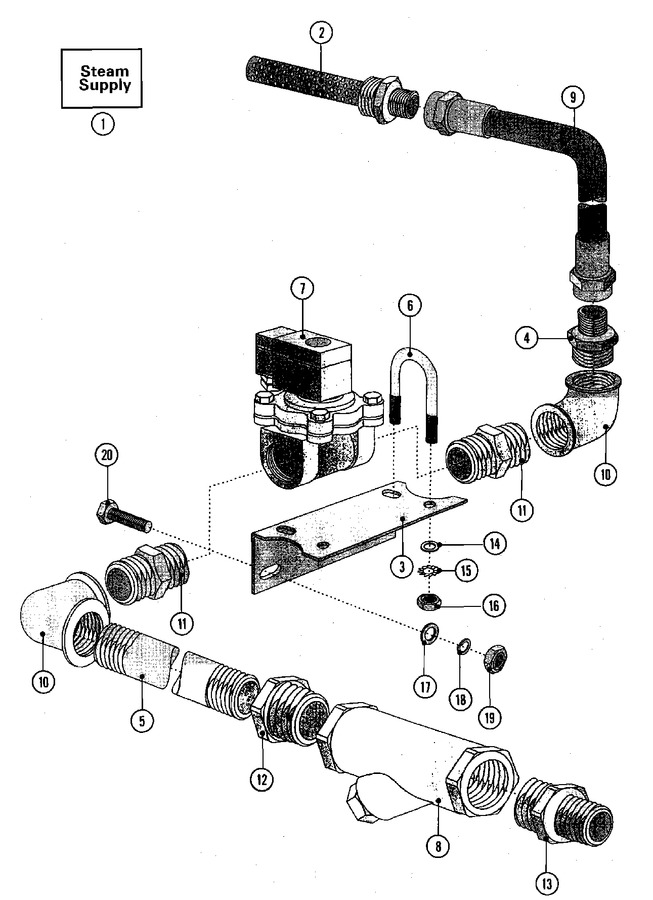

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003168		Supply, Steam	10	Appelez-nous	-
002	23003169		Pipe, Steam	10	Appelez-nous	-
003	NLA		Holder	10	Appelez-nous	-
004	23002812		Holder	10	Appelez-nous	-
005	NLA		Pipe	10	Appelez-nous	-
006	23002433		Holder	10	Appelez-nous	-
007	WP23004282		Valve, Steam (3/4)   (Replaces: 23003172)	10			$ 1,192.97
008	23002818		Pipe (protective Filter 1``)	10	Appelez-nous	-
009	23003173		Hose, Steam	10	Appelez-nous	-
010	23001756		Elbow (3/4``)	10	Appelez-nous	-
011	23001482		Nipple (3/4`` Pipe Thread)	10			$ 747.91
012	NLA		Bushing, Reducing	10	Appelez-nous	-
013	23002761		Reducer	10	Appelez-nous	-
014	23002282		Washer (6)	10	Appelez-nous	-
015	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
016	23002651		Nut (m6)	10	Appelez-nous	-
017	23002653		Washer (8/6)	10	Appelez-nous	-
018	23002358		Washer M8	10	Appelez-nous	-
019	NLA		Nut M8	10	Appelez-nous	-
020	23002475		Bolt (m8x20)	10			$ 13.66
