Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

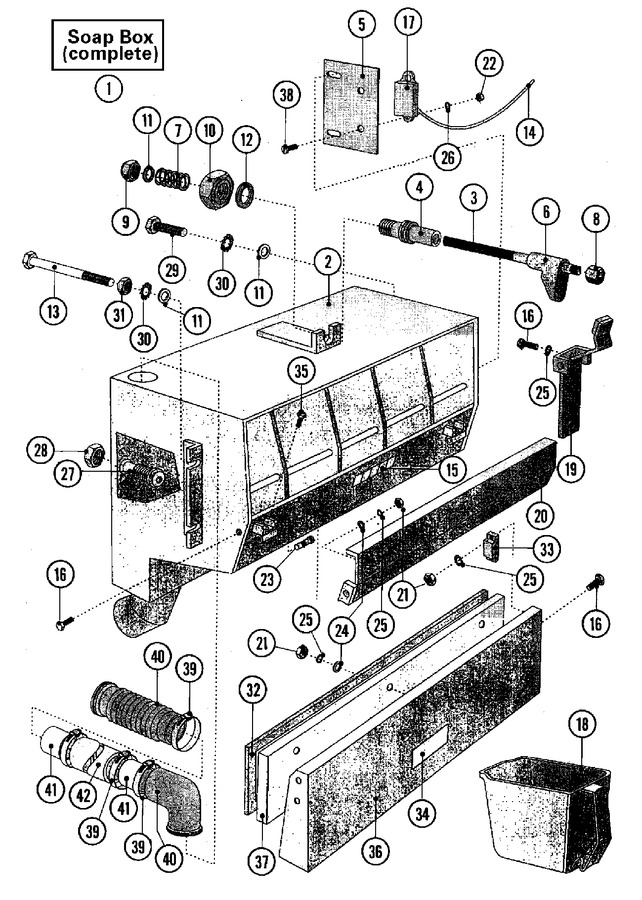

001	23003119		Soap Box (complete)	10	Appelez-nous	-
002	23003120		Box, Soap	10	Appelez-nous	-
003	23002748		Screw	10	Appelez-nous	-
004	23002747		Pin	10	Appelez-nous	-
005	23003121		Holder	10	Appelez-nous	-
006	23002749		Lever	10	Appelez-nous	-
007	23002010		Spring	10	Appelez-nous	-
008	NLA		Nut (m6)	10	Appelez-nous	-
009	23002471		Nut	10	Appelez-nous	-
010	NLA		Nut (m12)	10	Appelez-nous	-
011	23002282		Washer (6)	10	Appelez-nous	-
012	23002658		Washer (12)	10	Appelez-nous	-
013	NLA		Bolt, Complete	10	Appelez-nous	-
014	23002742		Tube, Insulation	10	Appelez-nous	-
015	NLA		Label, Soap Box	10	Appelez-nous	-
016	23001682		Screw (m4x6)	10	Appelez-nous	-
017	23001566		Switch, Magnetic	10	Appelez-nous	-
018	NLA		Vessel, Plastic	10	Appelez-nous	-
019	NLA		Overseal	10	Appelez-nous	-
020	23002737		Cover	10	Appelez-nous	-
021	23002652		Nut (qty Of 4 = 1 Piece)	10	Appelez-nous	-
022	23002500		Washer, Lock	10	Appelez-nous	-
023	23002736		Pin, Door	10	Appelez-nous	-
024	23002129		Washer (m4)	10	Appelez-nous	-
025	NLA		Washer	10	Appelez-nous	-
026	NLA		Washer	10	Appelez-nous	-
027	23002738		Nozzle	10	Appelez-nous	-
028	NLA		Nut	10	Appelez-nous	-
029	23002423		Screw (m4 X 10)	10	Appelez-nous	-
030	23002400		Washer	10	Appelez-nous	-
031	23002651		Nut (m6)	10	Appelez-nous	-
032	NLA		Sealing	10	Appelez-nous	-
033	23001668		Contact, Magnetic	10	Appelez-nous	-
034	23002134		Shield (``do Not Open``)	10	Appelez-nous	-
035	NLA		Screw (m4x6)	10	Appelez-nous	-
036	NLA		Cover	10	Appelez-nous	-
037	23002751		Cover, Insert	10	Appelez-nous	-
038	23002717		Screw (m3x6)	10	Appelez-nous	-
039	WP616099		Clamp, Hose (20-32)   (Replaces: 23001262)	10		Immediately	$ 7.03
040	NLA		Elbow	10	Appelez-nous	-
041	NLA		Part, Connection	10	Appelez-nous	-
042	23001740		Hose (19x27)	10	Appelez-nous	-
