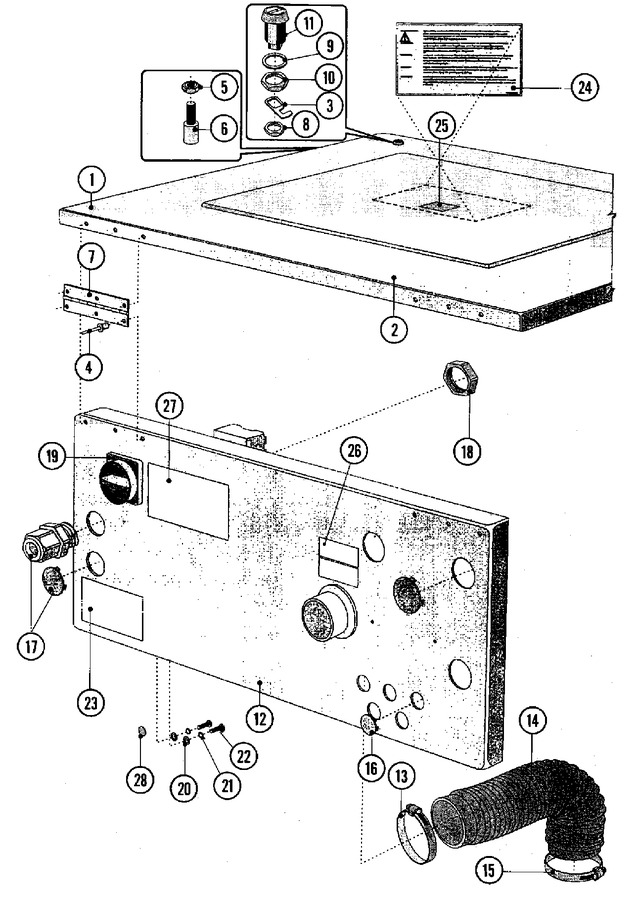

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Cover (complete)	10	Appelez-nous	-
002	NLA		Cover, Washing Machine	10	Appelez-nous	-
003	23002451		Pawl	10	Appelez-nous	-
004	NLA		Rivet/crank (4 X 7.5)	10	Appelez-nous	-
005	23002399		Nut(m4)	10	Appelez-nous	-
006	NLA		Pin, Guiding	10	Appelez-nous	-
007	NLA		Hinge, Cover	10	Appelez-nous	-
008	23001011		Nut	10	Appelez-nous	-
009	23001007		Washer, Fiber	10	Appelez-nous	-
010	23001008		Lock Nut (large)	10			$ 186.62
011	23001006		Lock, Top Panel	10	Appelez-nous	-
012	23003136		Valves, Cover (complete)	10			$ 367.54
013	WP616099		Clamp, Hose (32-50)   (Replaces: 23001261)	10		Immediately	$ 7.03
014	23003042		Hose, Rubber	10	Appelez-nous	-
015	23001256		Clamp, Hose (60-80)	10	Appelez-nous	-
016	NLA		Plug (13)	10	Appelez-nous	-
017	NLA		Inlet, Stuffing	10	Appelez-nous	-
018	23003138		Nut	10			$ 831.00
019	23003139		Controller	10	Appelez-nous	-
020	WP311093		Washer (6)   (Replaces: 23002726)	10			$ 7.25
021	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
022	23001733		Screw (m6x10)	10	Appelez-nous	-
023	23001465		Sticker, Electricity Warning	10	Appelez-nous	-
024	23001550		Label, Earth	10	Appelez-nous	-
025	NLA		Label, Flash	10	Appelez-nous	-
026	NLA		Label, Vent Out	10	Appelez-nous	-
027	NLA		Label, Warning (import)	10	Appelez-nous	-
028	NLA		Label, Earth	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
